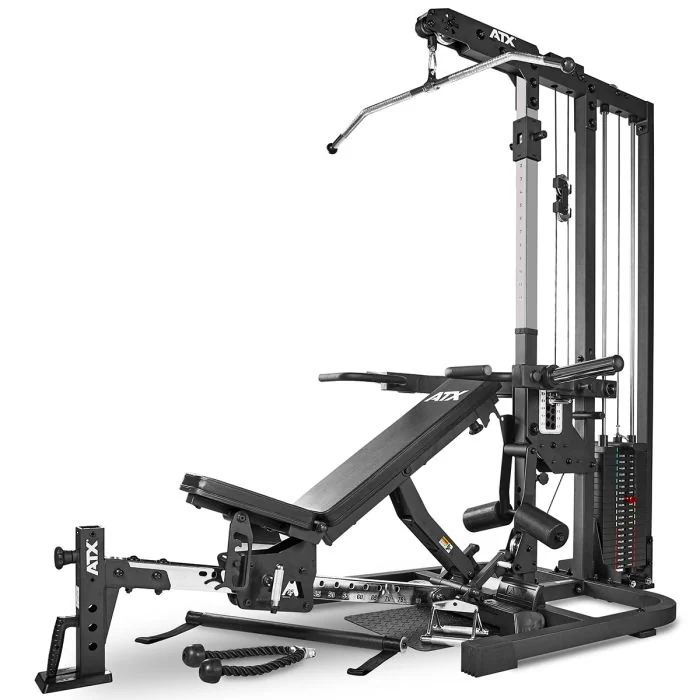

ATX Triplex Workout Station WSX-680
Compact multistation combining three machines in one. Features multi-press arms, adjustable bench, and lat pulldown with a 220 lb weight stack.
Complete your setup
About the product
ATX® TripleX Workout Station
– Outstanding Multi-Gym by ATX®
Three essential strength training stations combined into one ultimate machine!
- Lever Arm Press – Plate Loaded, fits 50 mm Olympic weight plates
- Lat Pulldown Station with 220 lbs (100 kg) weight stack
- Adjustable Workout Bench – removable
*Expandable with optional attachments
A top-tier all-in-one training solution for your full-body workout!
- Seamless transition between high and low pulley exercises
- Lever Arm Press supports incline, flat, and decline bench presses, overhead presses, bent-over rows, and more
- Endless additional exercises using the bench
- Incl. straight squat bar
- Incl. 47.2” lat bar, rowing handle, and triceps rope
- Ergonomically optimized design & biomechanics for maximum workout comfort
- Professional-grade handling
- Ultra-smooth aluminum guide rollers
- Vibration-free weight carriage
- Stretch-resistant, plastic-coated steel cable
- Dual ball-bearing lever arms
- Precise adjustability and biomechanical excellence
- Heavy-duty construction with thick-walled steel for exceptional durability
The ATX® TripleX Workout Station is anything but a wannabe when it comes to professional home gyms. It's a premium, highly functional strength training station that delivers an exceptional workout experience thanks to its outstanding biomechanics, heavy-duty thick-walled construction, and optimized training ergonomics.
- Engineered in Germany – Premium Quality
- Studio Certified – EN 20957 I.II.IV Class S
Customize your workout experience to suit your needs!
A wide range of compatible accessories and attachments is available for the bench.
Specifications
| SKU | ATX-WSX-680-SW |
|---|---|
| Brand | ATX |
| Length | 54.9” (92.9” with bench) |
| Width | 55.1” |
| Height | 84.1” |
| Weight | 613 lb |
| Weight capacity |
Workout bench: 881 lb Lever arms: 551 lb (275.5 lb per arm) Lat pulldown: 352 lb |
| Sleeves diameter | 2" |
| Color | Matte black |
| Included |
1 x Straight Squat Bar 1 x Lat Pulldown Bar (47.2” / 120 cm) 1 x Close-Grip Row Handle 1 x Triceps Rope |
| Safety certificate | EN 20957 I.II.IV - S |
| Packaging size | 81.9” x 23.6” x 27.6” (wooden crate) |
Overview
Lever Arm Press Station
- Outstanding biomechanics, ideal for flat bench press, incline bench press, overhead press, decline bench press, and more
- Independent lever arms with two grip options, height-adjustable in 11 positions (2” increments)
- Independent lever arms for balanced, symmetrical strength development
- Park and adjustment positions for greater exercise variety and enhanced user convenience
- Detachable Straight Bar included for squats, close-grip bench press, and more
- Maximum load capacity: 551 lb (2 x 275.5 lb)
Lat Pulldown Station
- 220 lb (100 kg) weight stack, adjustable in precise 11 lb (5 kg) increments
- Direct 1:1 power transmission for maximum resistance output
- Built-in roller band pegs for adding resistance bands
- Versatile training options with upper and lower pulley positions, ready to use without adjustments
- Ultra-smooth operation thanks to guided weight stack with glide bushings
- Solid steel guide rods
- Double ball-bearing aluminum pulleys
- Adjustable cable length for precise grip height positioning
- Stretch-resistant steel cable with black protective coating
- Adjustable leg hold-down
- Durable PU/urethane padded rollers
- Heavy-duty foot supports for seated rows
- Extra-large standing platform
ATX® Multi-Bench RAS
An exeptional multi-bench – outstanding in both functionality and build quality!
- 15-position adjustable backrest from -10° to 83°
- 4-position adjustable seat
- Easy and intuitive adjustment
- Studio Certified – EN 20957 I.II.IV – Class S
- Premium upholstery made from high-quality synthetic leather
- Feet with all-around edge protection
- Non-slip footplate with integrated transport wheels
- Sleek design – matte black with chrome accents
- Front and rear accessory mounts
Wide Range of Options
- ATX® Leg Curl / Extension Option OP-LEA
- ATX® Pec Fly Option 2.0 OP-PEA
- ATX® Preacher Curl Option 2.0 OP-BCP
- ATX® Biceps Curl Machine Option OP-CUA
- ATX® Ab Trainer Attachment Option OP-ABA
- ATX® Head Pad Extension OP-HPAD-150 / ATX® PU Head Pad Extension OP-HPAD-130
- ATX® Option Storage Rack OP-STOR
* Options available at an additional cost
Included in delivery
1 x ATX® TripleX Workout Station – Multi-Gym by ATX®
Incl. adjustable and removable workout bench
Incl. 4 x grip attachments:
- 1 x Straight Squat Bar
- 1 x 47.2” Lat Pulldown Bar
- 1 x Close-Grip Row Handle
- 1 x Triceps Rope
Item Number: ATX-WSX-680-SW
Note
*Compatible options available for the 2023 – 2.0 series and newer.
Accessories shown in the images, such as weight plates and resistance bands, are not included in the delivery.
FEATURES

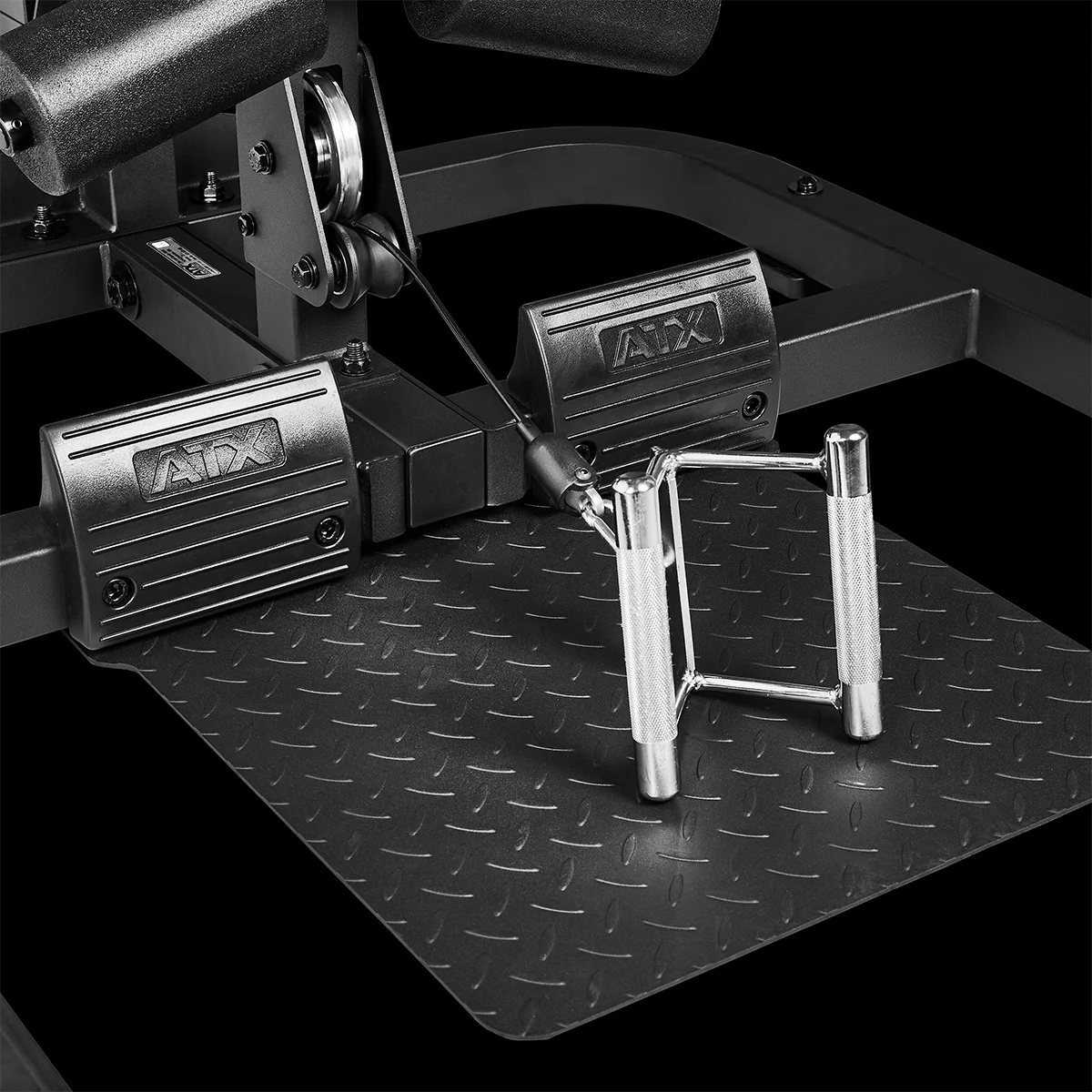

LARGE, STABLE BASE PLATE & STURDY FOOTRESTS

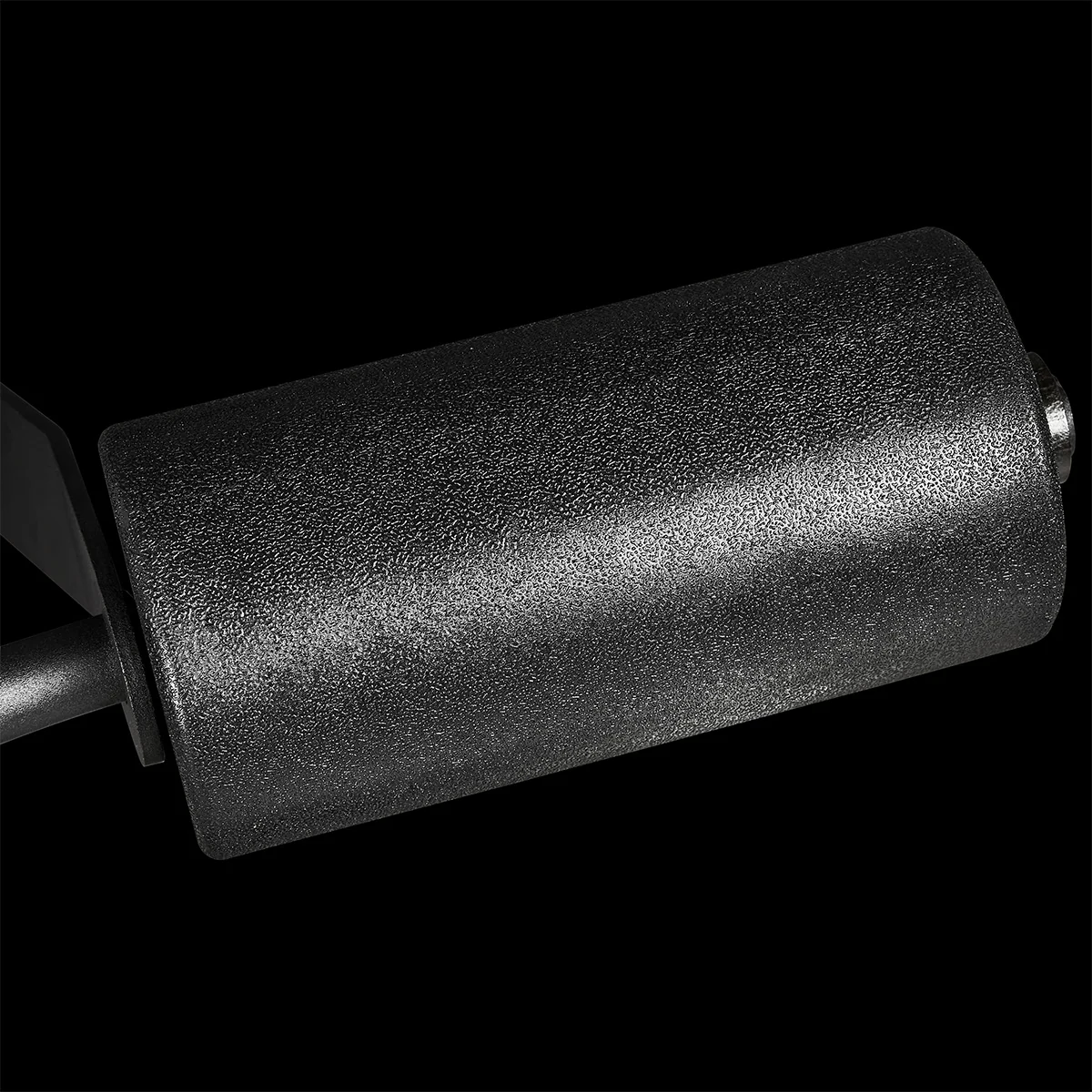

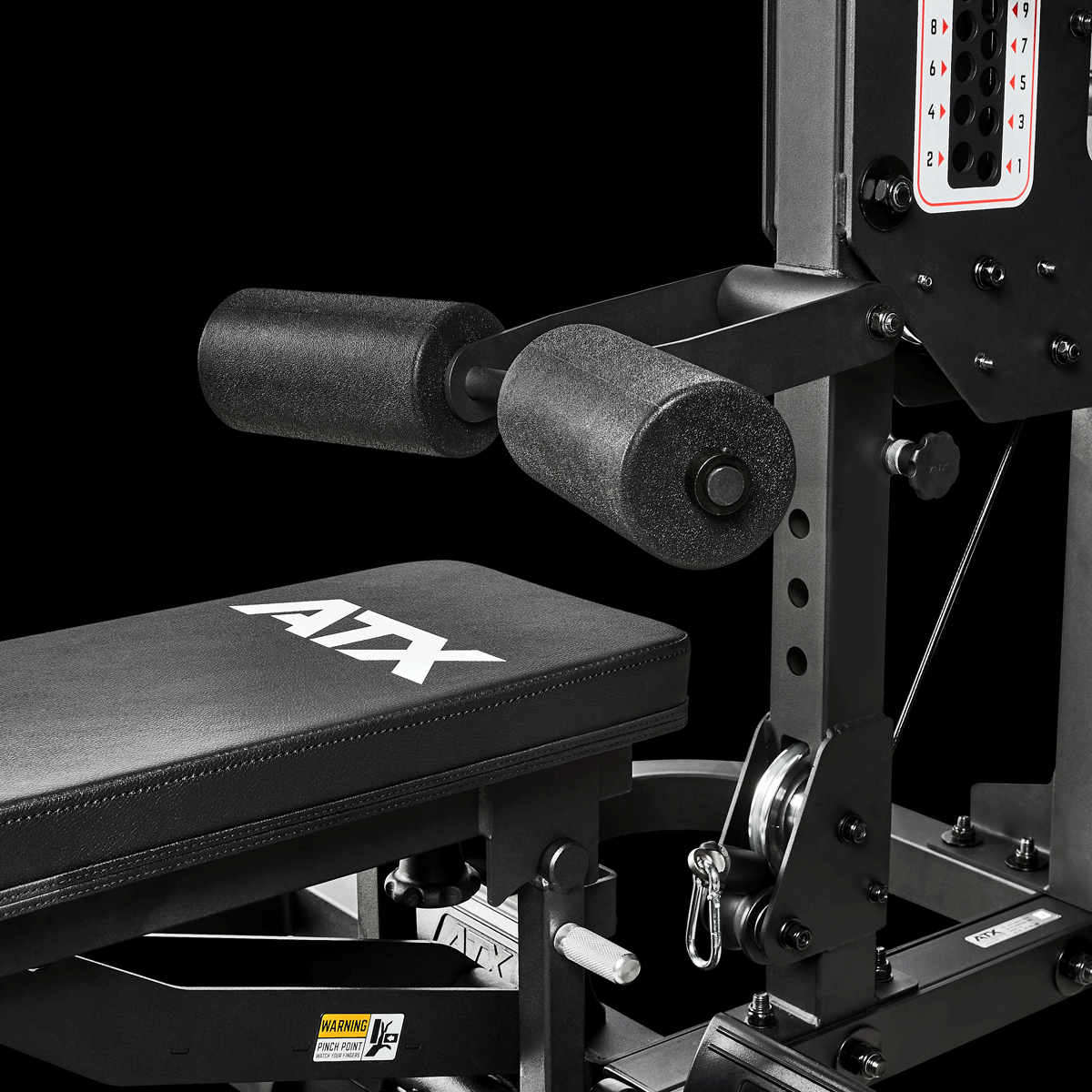

HIGH-QUALITY, DURABLE PU-PADDED ROLLERS

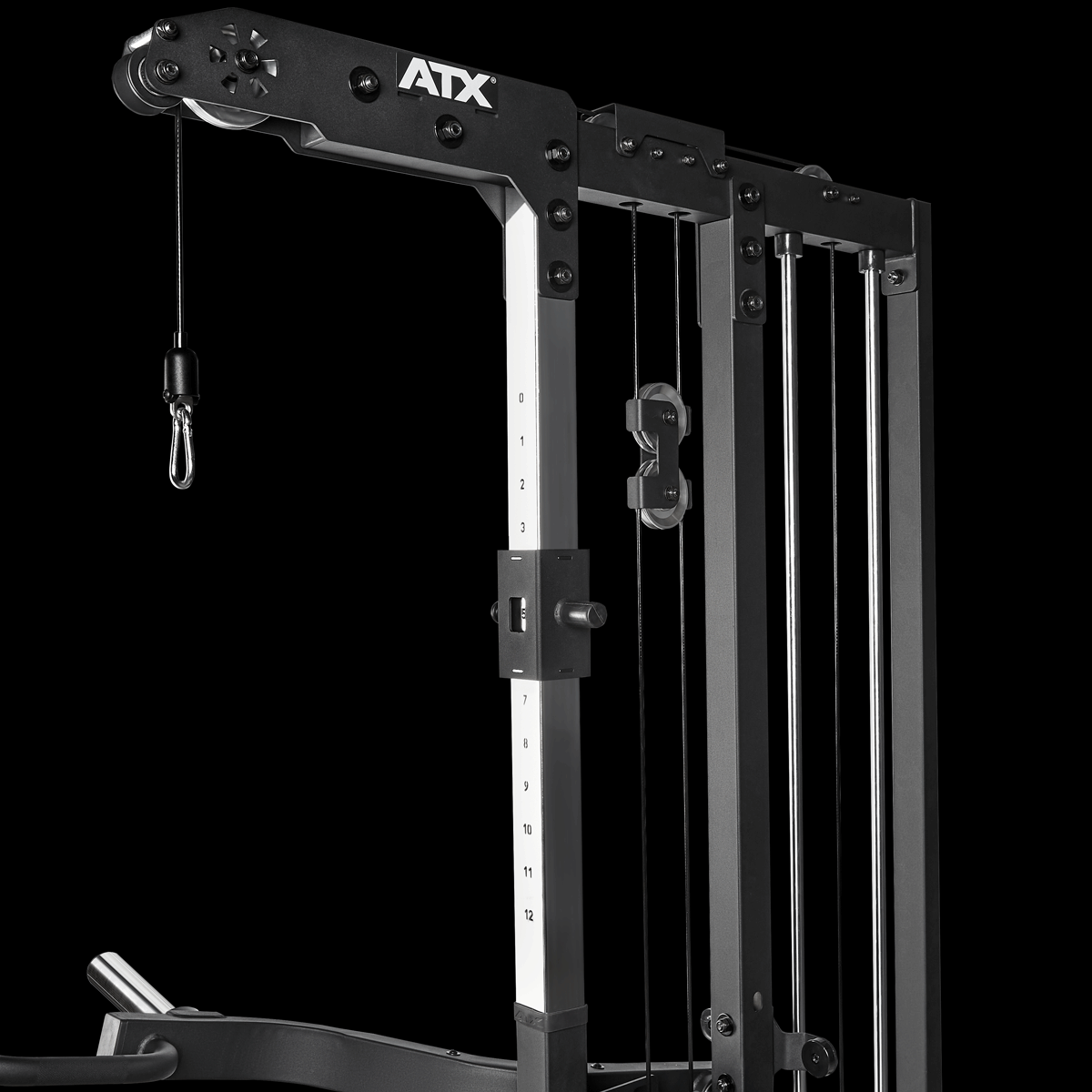

ROPE LENGTHS CAN BE PRECISELY ADJUSTED TO THE HANDLE HEIGHT

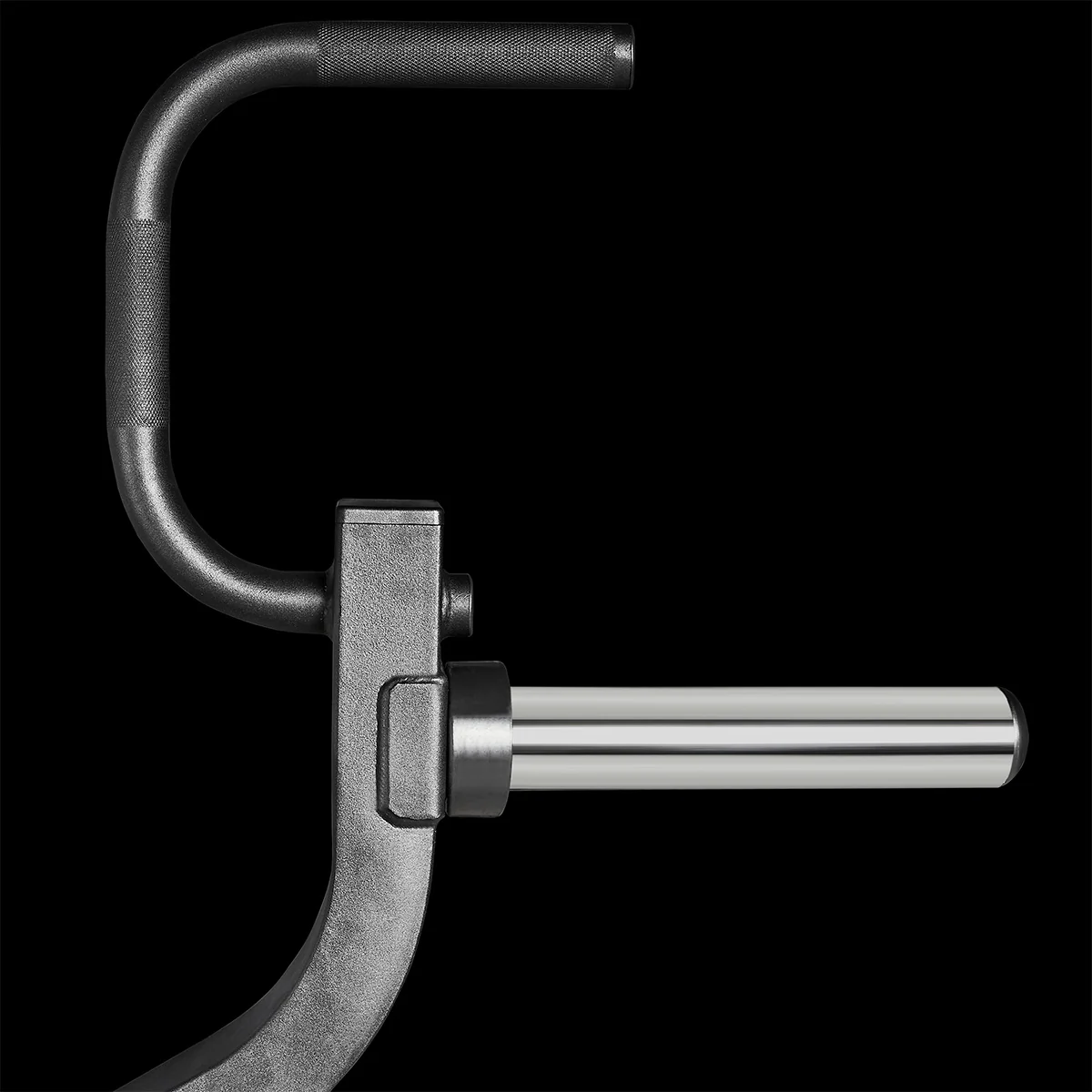

2 HANDLE VARIATIONS - HANDLES WITH A NON-SLIP KNURLED GRIP

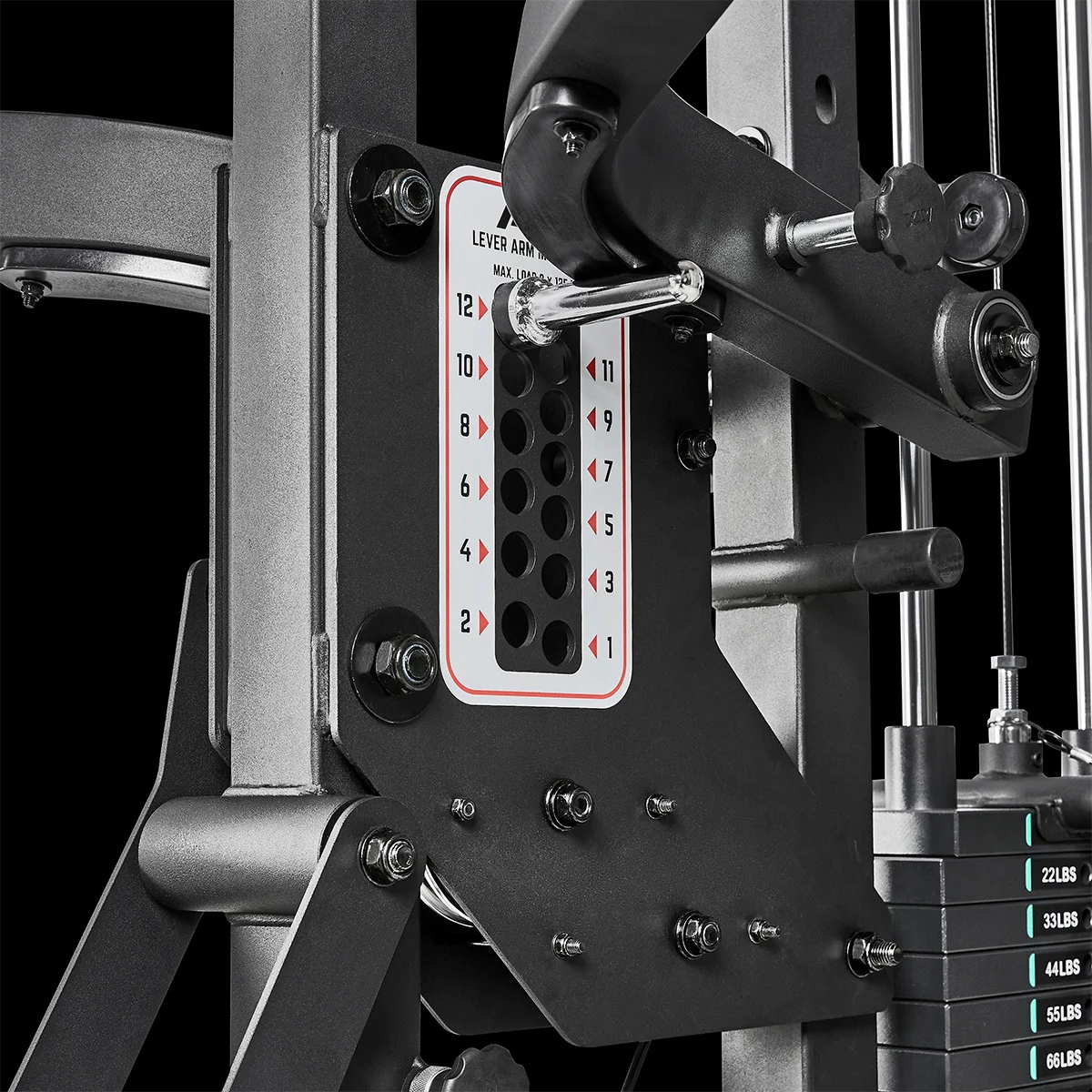

12-POSITION ADJUSTMENT OF THE LEVER ARMS
OUTSTANDING SMOOTH-RUNNING PERFORMANCE THANKS TO PREMIUM-QUALITY ROLLERS
INDIVIDUAL HEIGHT ADJUSTMENT TO SUIT THE USER'S BODY SIZE

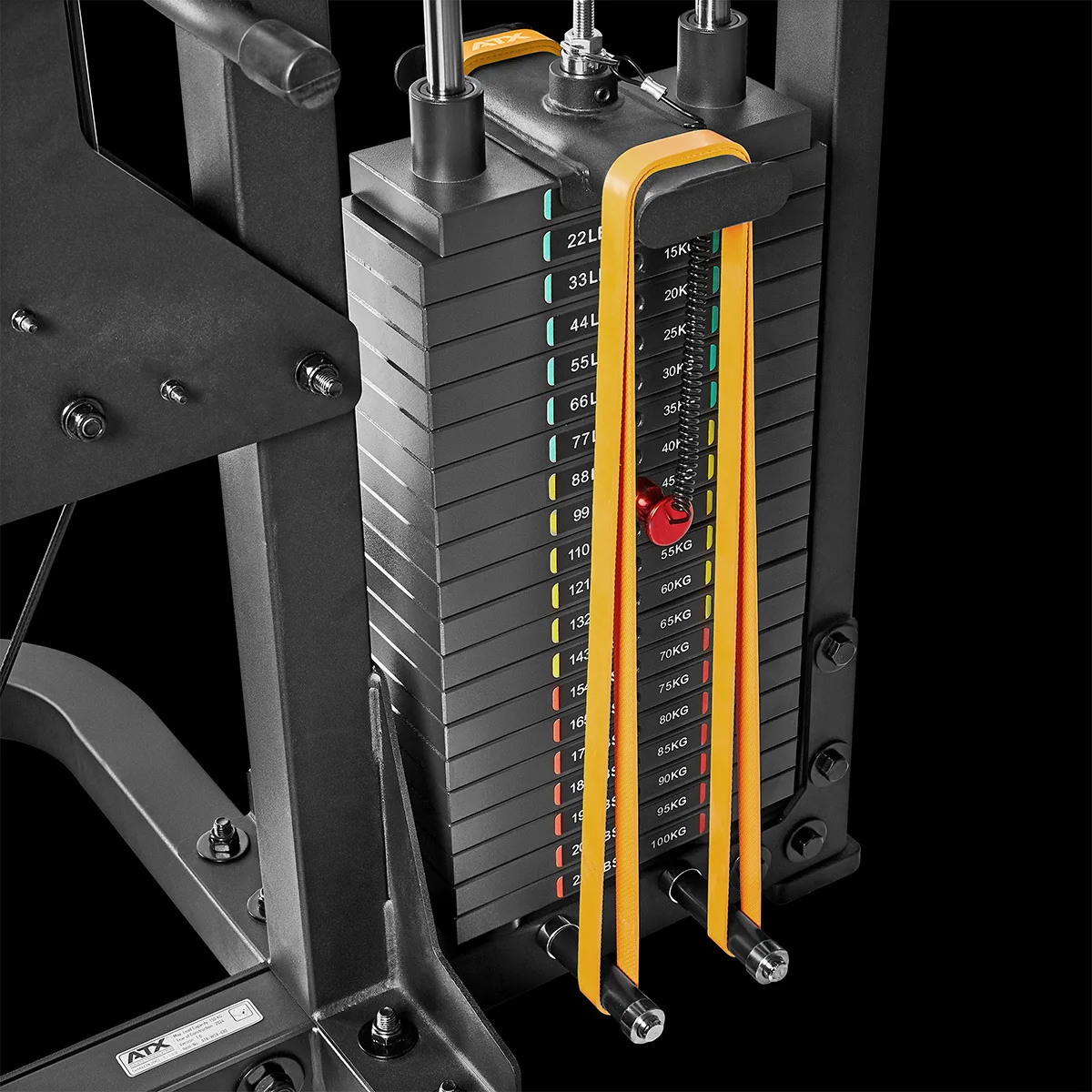

LAT PULLDOWN STATION WITH 100 KG WEIGHT STACK & CABLE ATTACHMENT
LAT PULLDOWN STATION WITH 220 LB WEIGHT STACK & CABLE ATTACHMENT

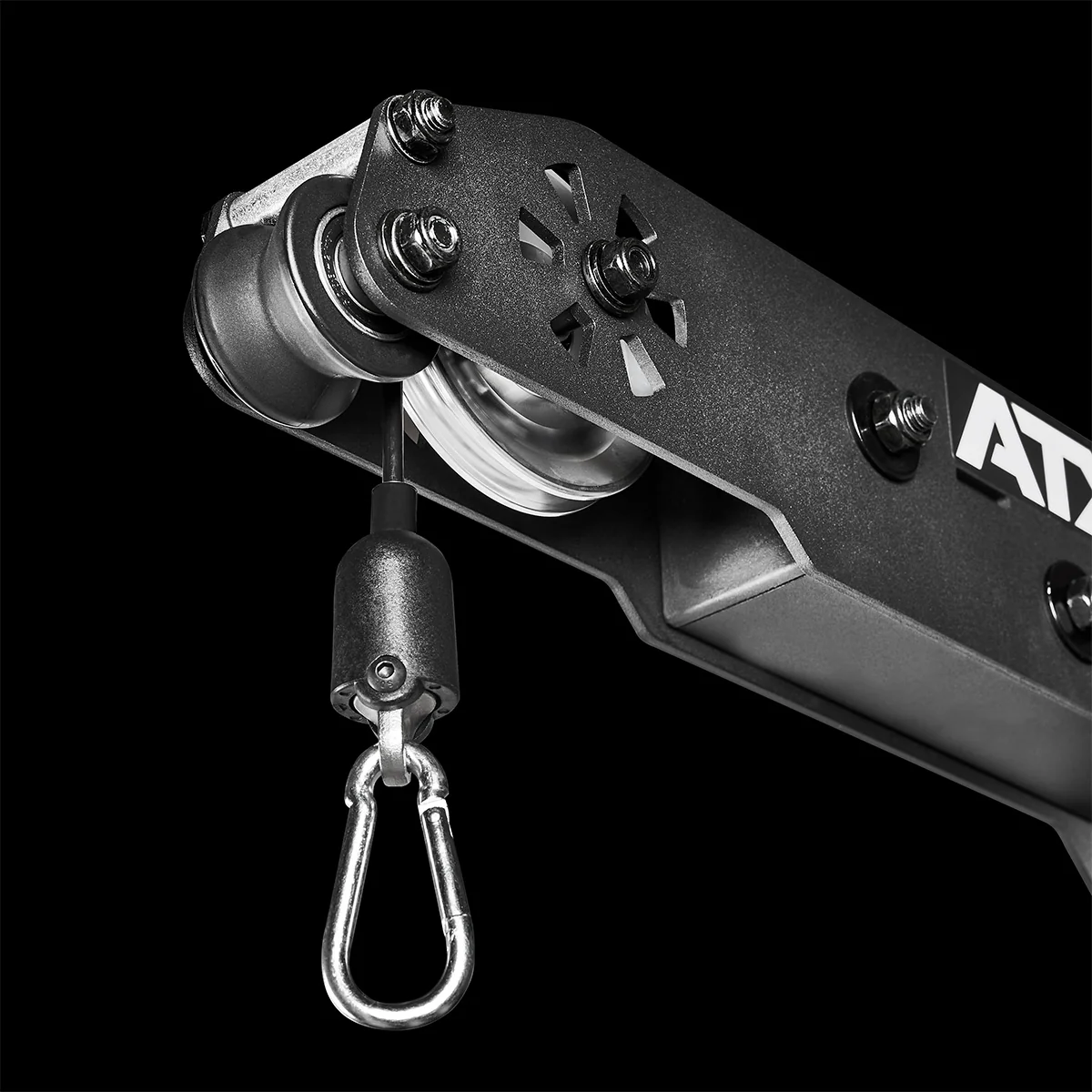

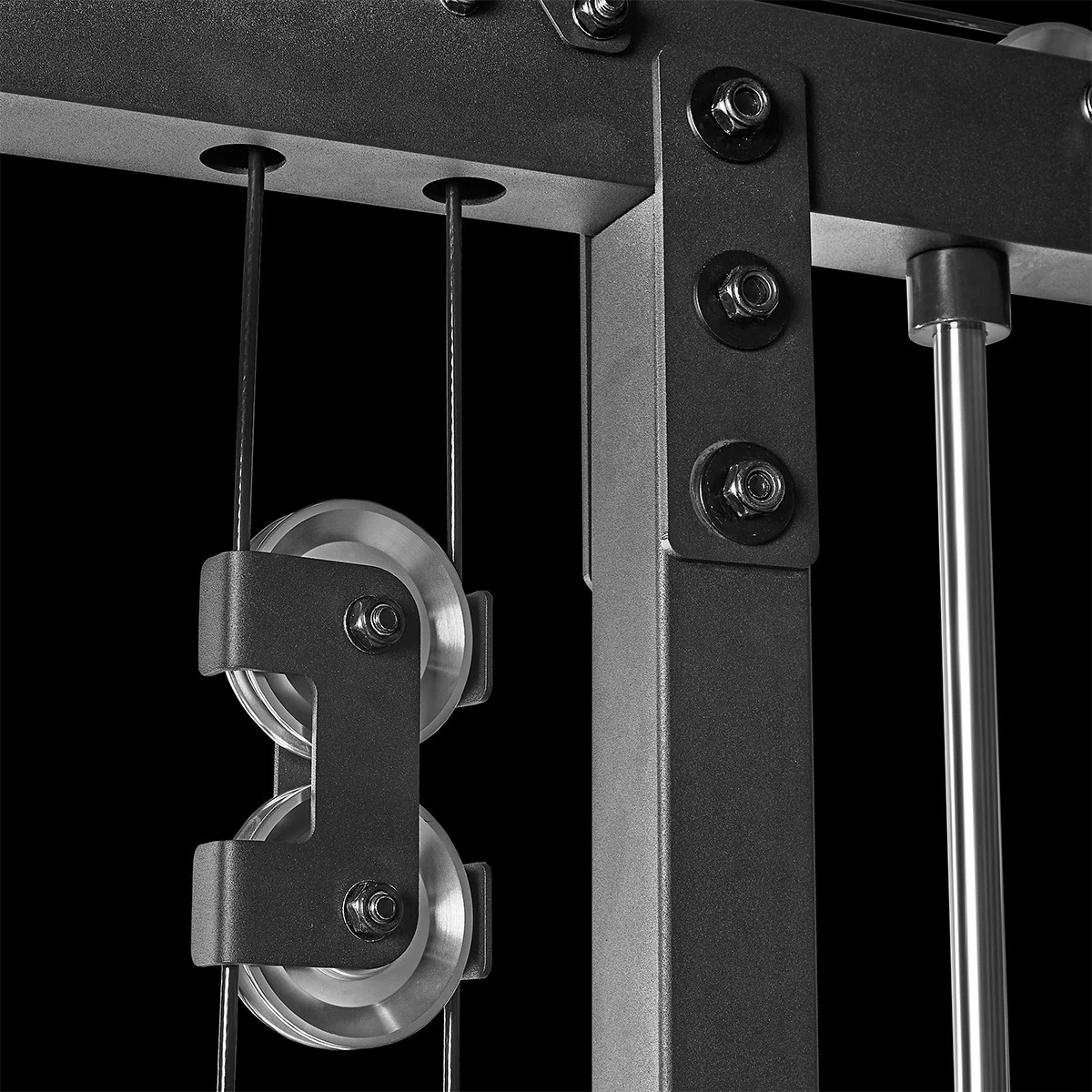

DOUBLE BALL-BEARING COUNTER-ROTATING ROLLERS FOR ULTRA-SMOOTH, LOW-WEAR CABLE GUIDANCE

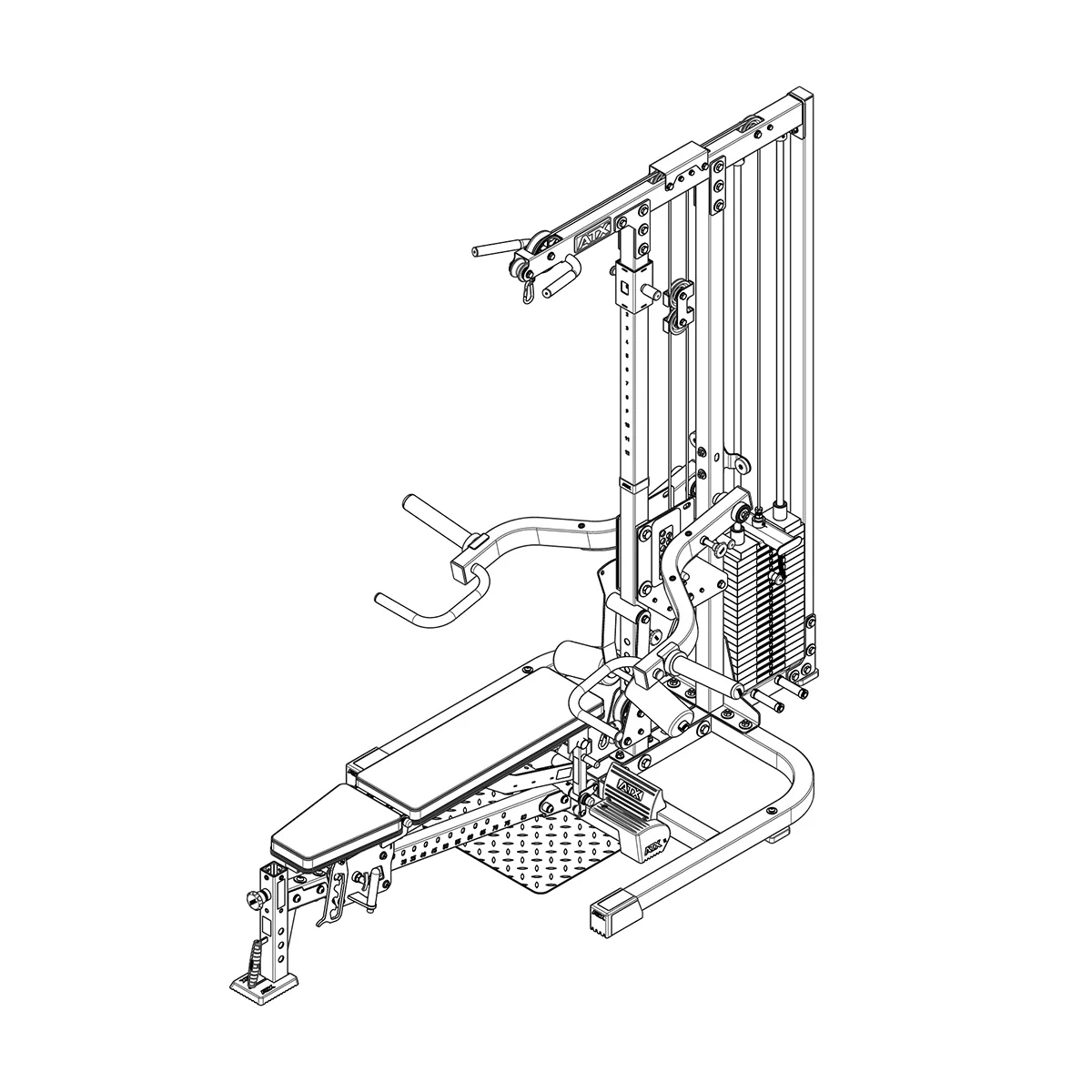

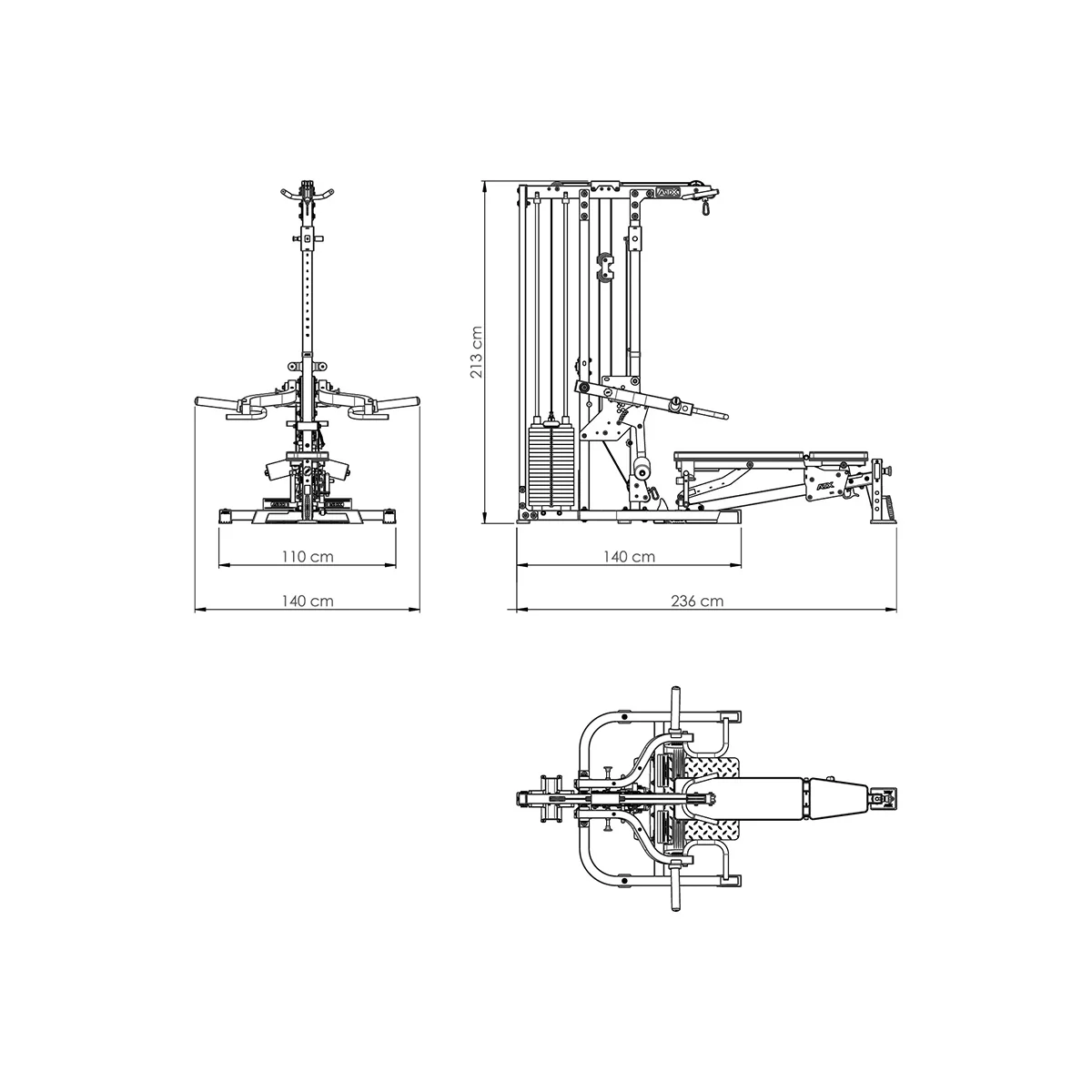

Dimensions
