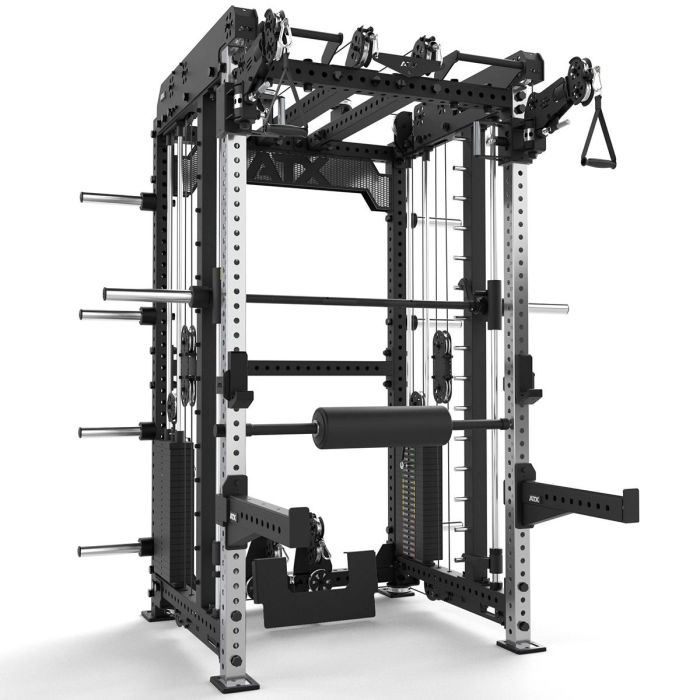

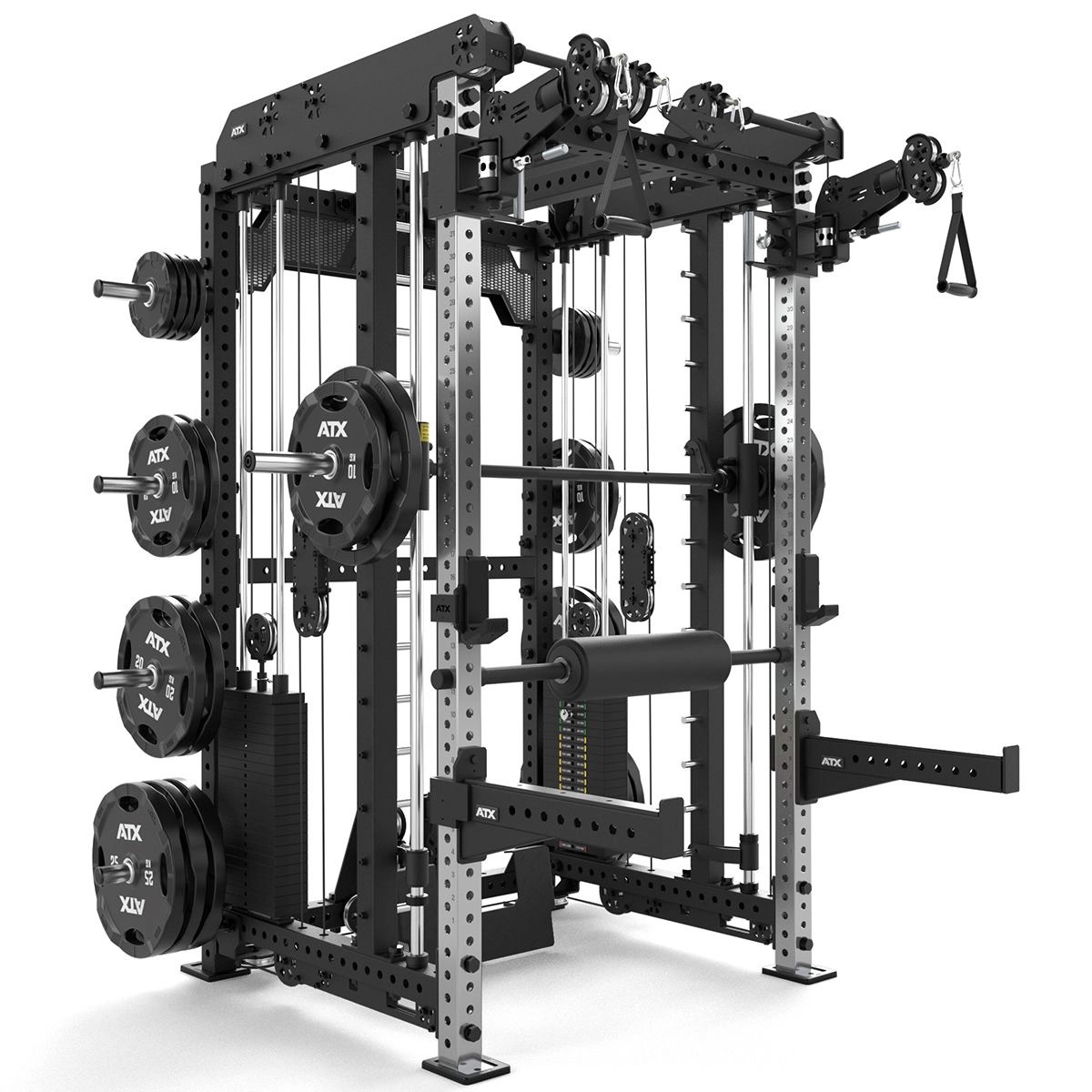

ATX Multi Pull Smith Rack MPHR-780
This professional all-in-one power rack in proven ATX® quality combines an integrated Smith machine with dual 242 lb weight stacks for maximum training versatility in a compact footprint. Studio-certified, heavy-duty, and modularly expandable – ideal for demanding home gyms and commercial use.
About the product
ATX® MULTI PULL SMITH RACK MPHR-780
– All-In-One Training Station
THE ATX® MULTI PULL SMITH RACK MPHR-780 – 2.0 IS AN INCREDIBLE TRAINING STATION!
A heavy-duty half rack, professional-grade Smith machine, heavy lat pulldown system, and extensive accessories allow for an exceptionally versatile and professional range of exercises.
The 6 pulley swivel arms allow for a wide variety of multifunctional cable exercises. All 6 pulley points are connected to the 2 x 242 lb weight stacks with a 2:1 resistance ratio. The two centrally positioned pulleys can be used alternately or synchronized using the included cable connector. This enables a wide range of single-arm, alternating, or simultaneous pulling movements.
By coupling the pulleys, heavy pulling exercises such as lat pulldowns or seated rows can be performed professionally and effectively. The included leg support and telescopic footplate provide secure stabilization during these exercises. The swivel pulley arms mounted on the front upright tubes are adjustable in both height and width, allowing for narrow as well as extra-wide cable exercise variations, including cable crossovers.
All essential exercises can be performed using either the free-weight rack or the linear-guided Smith machine. J-hooks and spotter arms are already included. An integrated pull-up station is also built in.
The massive, highly stable construction is completely torsion-resistant, built for heavy-duty use, and finished to a first-class standard. Its functionality is outstanding, while adjustments and handling are simple and intuitive.
Specifications
| SKU | ATX-MPHR-780 |
|---|---|
| Brand | ATX |
| Product series | 700 |
| Width | 76.8" |
| Depth | 70.7" |
| Height | 90.6" |
| Weight | 1422 lb |
| Weight capacity |
J-Hooks: 1102 lb Spotter Arms: 881 lb Multi-Press: 440 lb |
| Frame size | 2.8" x 2.8" 11-Gauge |
| Color | Black |
| Safety certificate | EN 20957 I.II.IV - S (Studio) |
HEAVY-DUTY, ULTRA-STABLE CONSTRUCTION
- Powerful, performance-driven design
- Constructed from heavy-duty 2.8” x 2.8” 11-gauge square steel tubing
- Numbered adjustment hole system with laser-etched indexing
- Absolutely rigid and torsion-free construction
- Premium-quality components throughout!
+ Front upright tubes with laser-etched stainless steel scale markings
+ Aluminum cable pulleys - High net weight of 1422 lb for extreme stability – no floor anchoring required
- Heavy-duty load capacity – supports over 2,200 kg frame load
- Rubberized feet protect flooring and provide a non-slip base
- Durable, abrasion-resistant powder coating
- ATX logo plate in honeycomb design with stainless steel backing
- Approved for commercial gym use
Incl. J-Hooks
- Manufactured from heavy-duty 0.4” steel plate
- Equipped with thick full-surround rubber protectors to protect the barbell and reduce noise
- Features internal plastic protectors to safeguard the frame and finish
- Heavy-duty load capacity – rated up to 1,100 lb
Incl. Spotter Arms / Safety Catches
- Extended reach design – 24.6” in projection
- Thick protective padding to protect the barbell and minimize noise
- Ultra-stable U-bracket construction made from 0.3” steel plate
- U-brackets feature internal plastic protectors to safeguard the frame and finish
- Heavy-duty load capacity – rated up to 881 lb
WITH PROFESSIONAL-GRADE SMITH MACHINE
- 4-point linear ball-bearing system
+ Exceptionally smooth movements
+ Ultra-quiet operation - Minimal flex and torsion thanks to hardened chrome-plated steel guide rods, Ø 30 mm / 1.2”
- Solid steel barbell, Ø 30 mm / 1.2”, with knurled grip and grip-width markings, finished in black chrome with individually adjustable safety stops with spring cushioning
- Storage hooks with plastic protection for quiet and secure racking/unracking
- Weight plate holders: Ø 50 mm / 2” x 11.8”
- Heavy-duty load capacity – rated up to 440 lb
- Guide rods and weight plate holders feature hard chrome plating
- Black chrome barbell with aggressive knurling and grip position markings
WITH 2 X 242 LB WEIGHT STACKS
- Premium smooth-operating system
- Ball-bearing aluminum cable pulleys
- Weight stack configuration: 22 x 11 lb increments per stack
- 2:1 pulley ratio
- Stretch-resistant steel cable with protective coating
- Six different cable output positions
2 x 2 alternating high and low pulley positions plus 2 side-mounted duplex swivel pulley arms - Incl. leg support roller
Removable and quick-adjustable height settings for secure stabilization during exercises - Incl. telescopic footplate
Ensures secure positioning and maximum range of motion during seated rows - Incl. weight plate storage
8 chrome-plated weight plate holders for 50 mm (2”) Olympic plates - Incl. 2 single-handle grips + carabiner clips
FUNCTIONAL & THOUGHTFULLY DESIGNED DOWN TO THE LAST DETAIL
- All-around multi-hole system with a fine 50 mm (2”) hole grid allows attachment of additional options and accessories
- Front upright tubes made from high-quality stainless steel
- Laser-etched numerical scaling for precise and quick reproduction of setup heights for J-hooks, pulley arms, and spotters

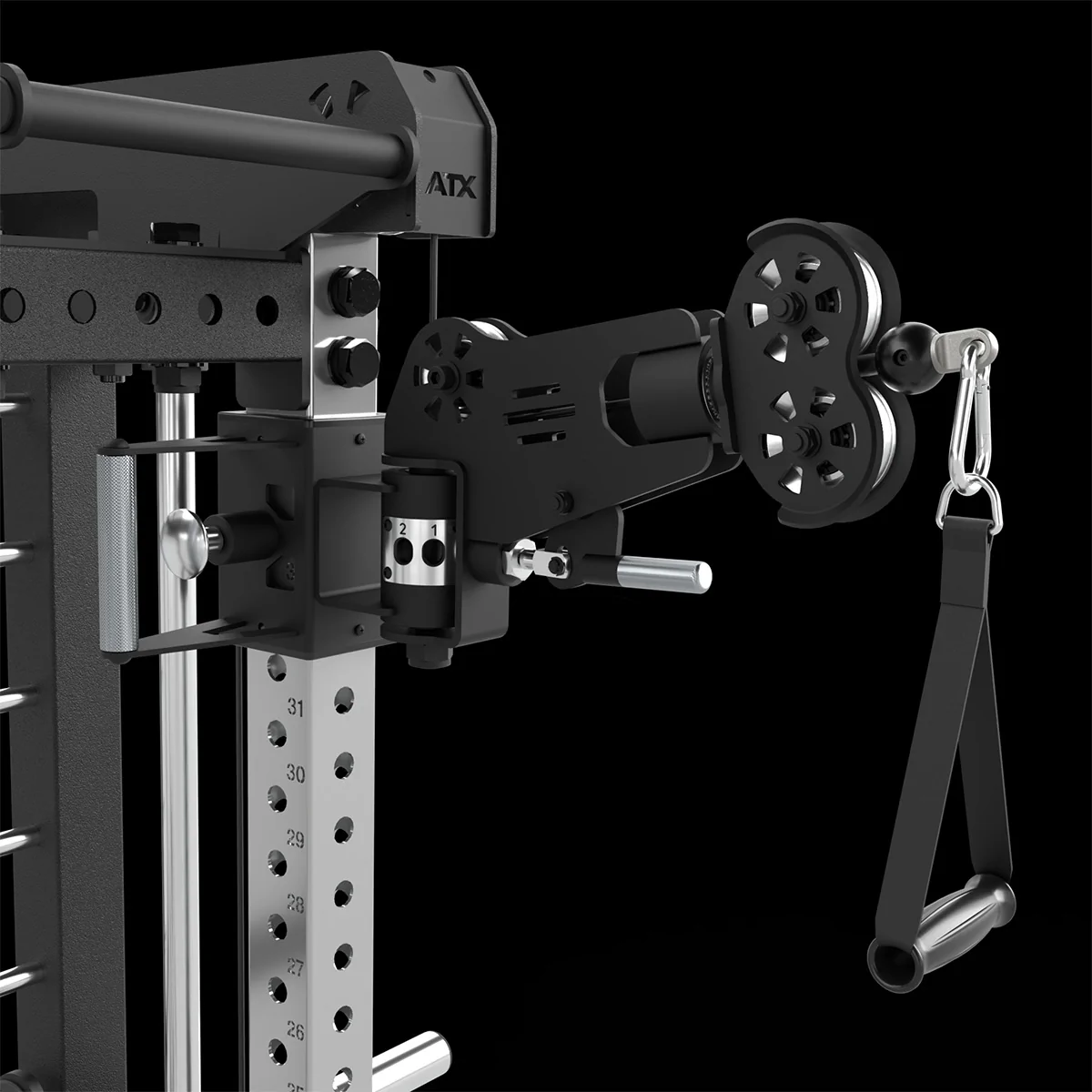

- Equipped with ATX® XT-ARMS / swivel pulley extension arms
+ Individually adjustable in both height and cable reach
+ Integrated stainless steel adjustment scale
+ 170° swivel range
+ Enables both narrow and extra-wide cable settings (cable crossover exercises)
MODULARLY EXPANDABLE
- The unit can be expanded with additional premium ATX® options
A RACK IN PROVEN ATX® QUALITY
- German engineering
- First-class workmanship and functionality
- Durable and built to retain long-term value
- Approved for commercial gym use
INCLUDED IN DELIVERY
1 x ATX® MULTI PULL SMITH HALF RACK – Complete Training Station
Incl. 2 single-handle grips & carabiner hooks
Item Number: ATX-MPHR-780
NOTE
Delivered disassembled, including assembly instructions — easy to assemble.
Delivery upon prior telephone appointment (notification in advance).
FEATURES

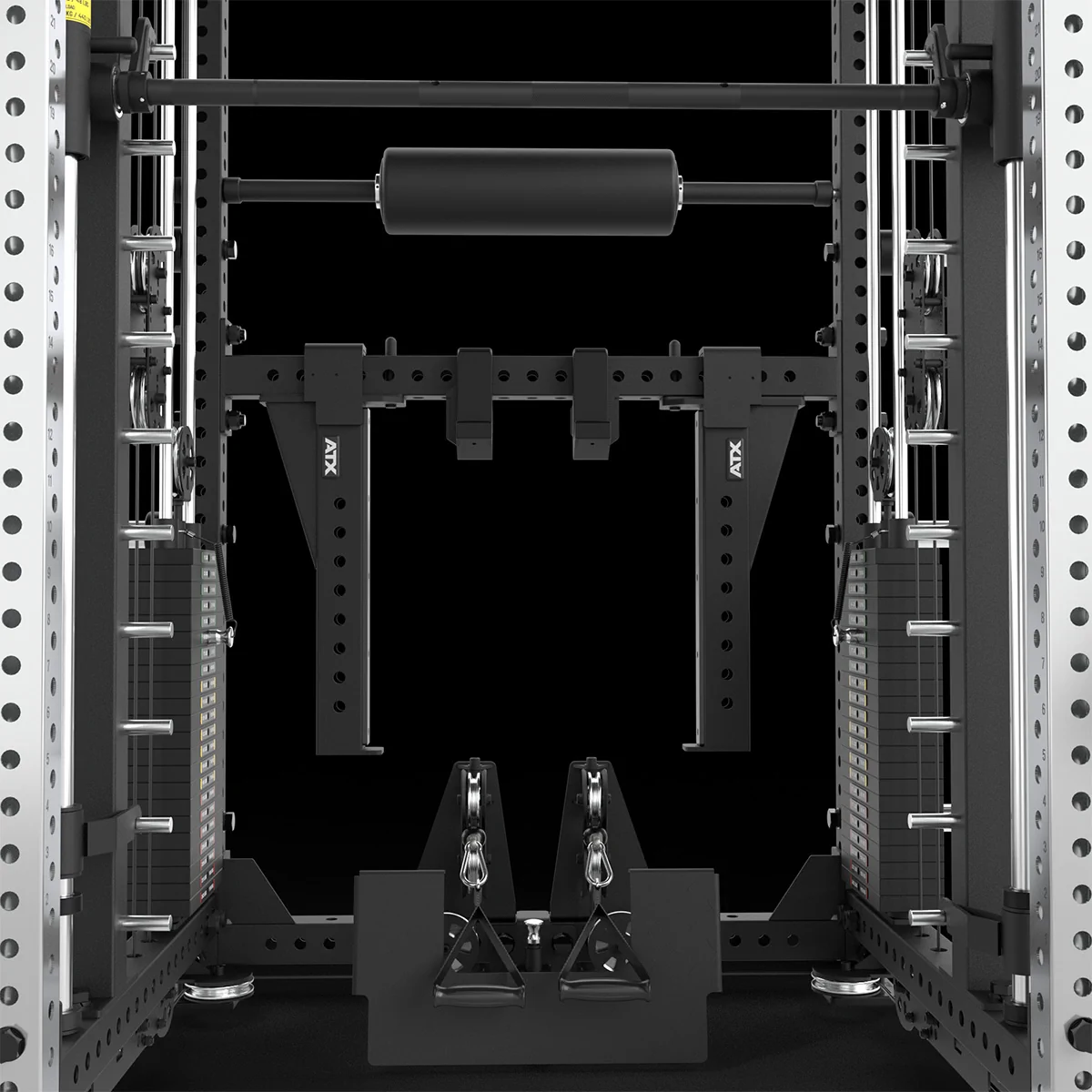

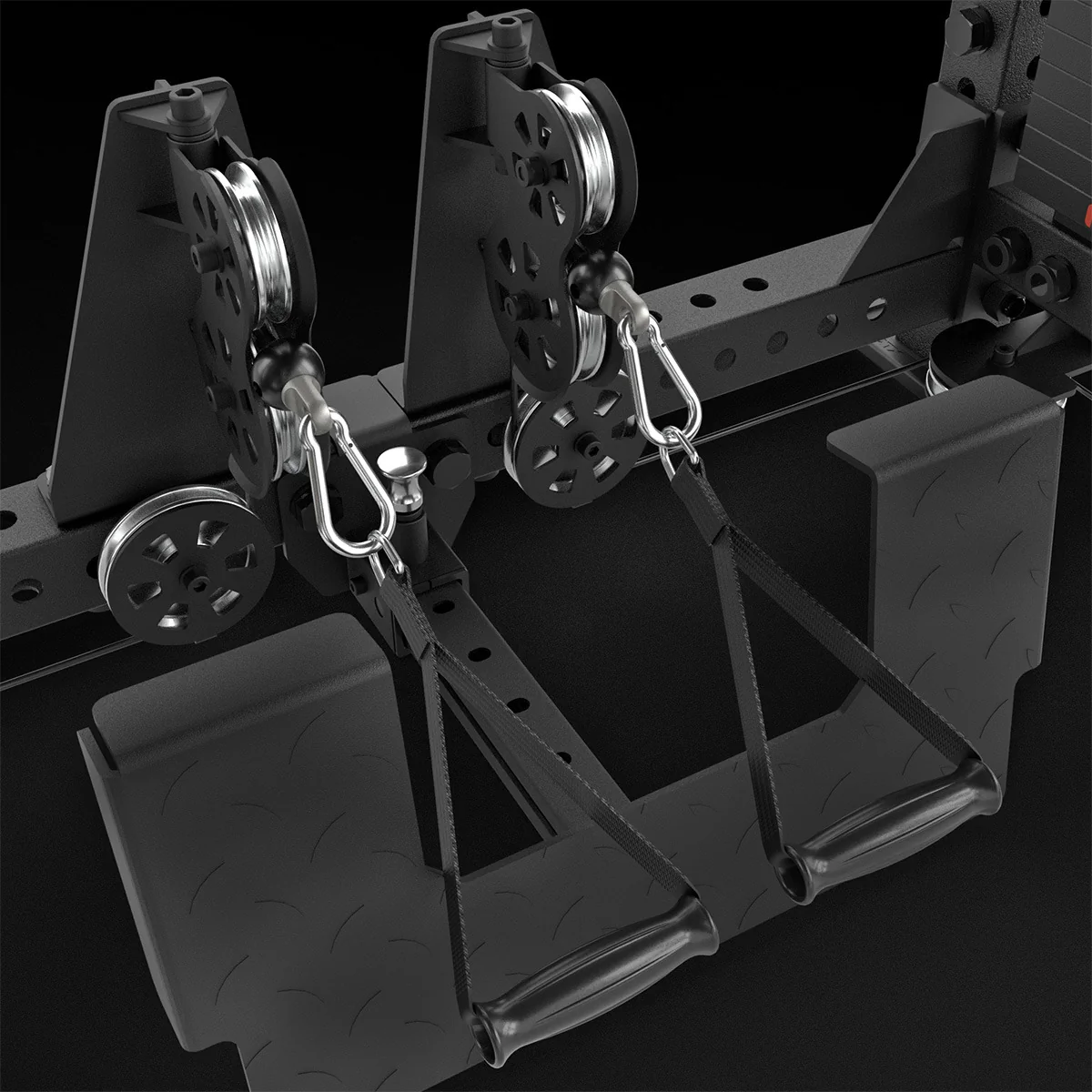

LARGE FOOTPLATE – TELESCOPICALLY ADJUSTABLE
ATX® XT-ARMS / EXTENSION ARMS – WITH HIGH-QUALITY STAINLESS STEEL COMPONENTS

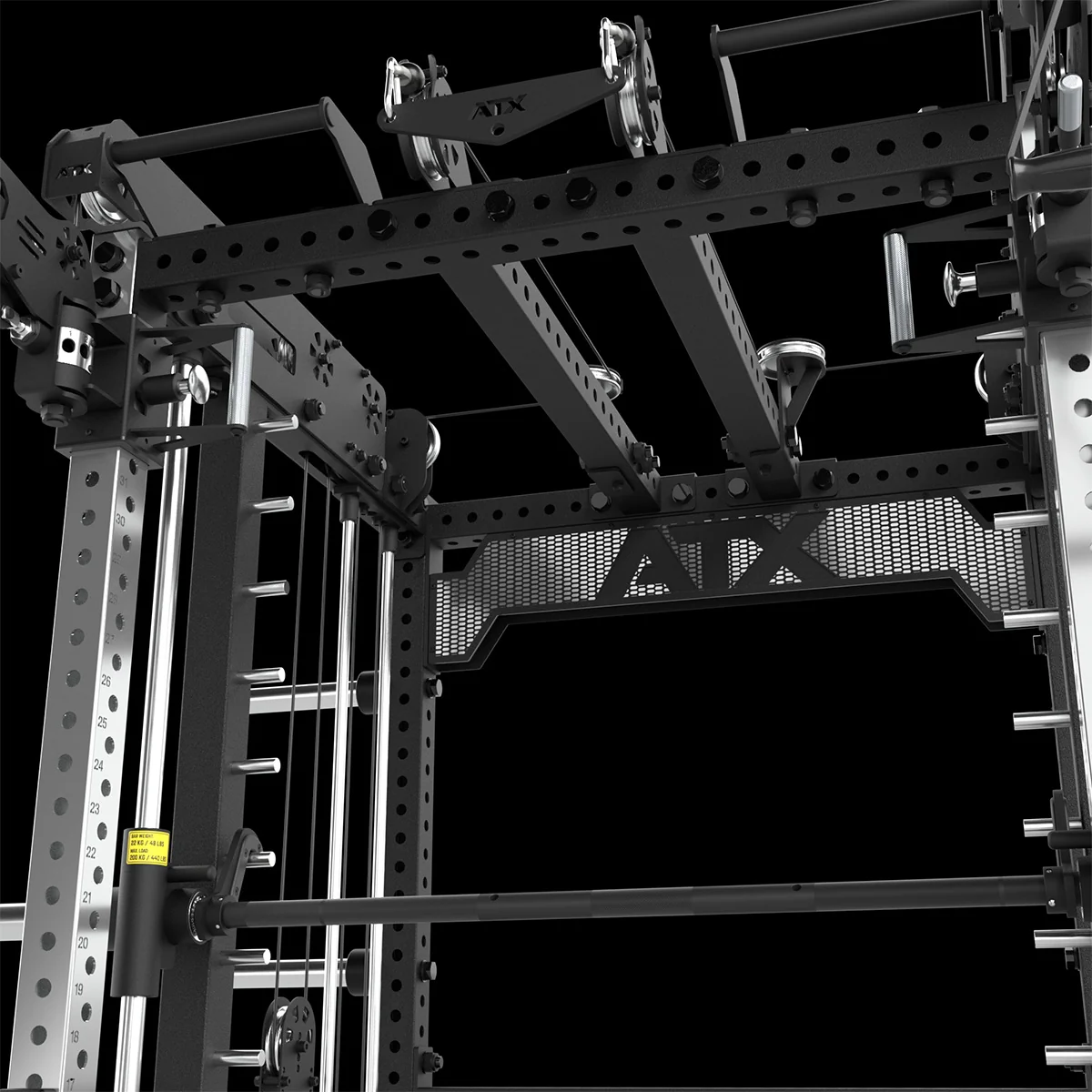

ATX® LOGO PLATE IN STAINLESS STEEL HONEYCOMB DESIGN

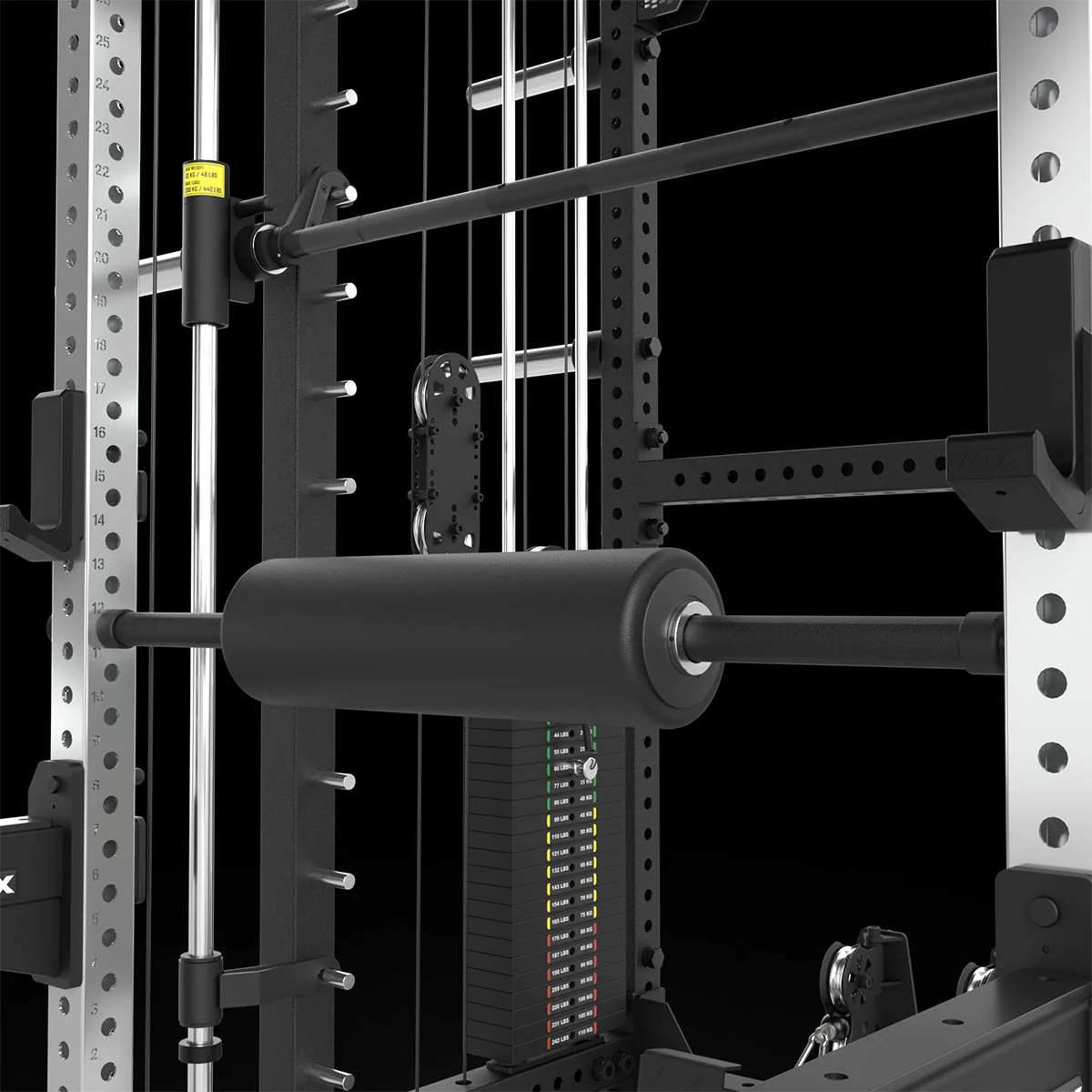

HIGH-QUALITY PADDED SUPPORT – HEIGHT ADJUSTABLE
FRONT UPRIGHTS IN STAINLESS STEEL WITH LASER-ETCHED SCALE MARKINGS

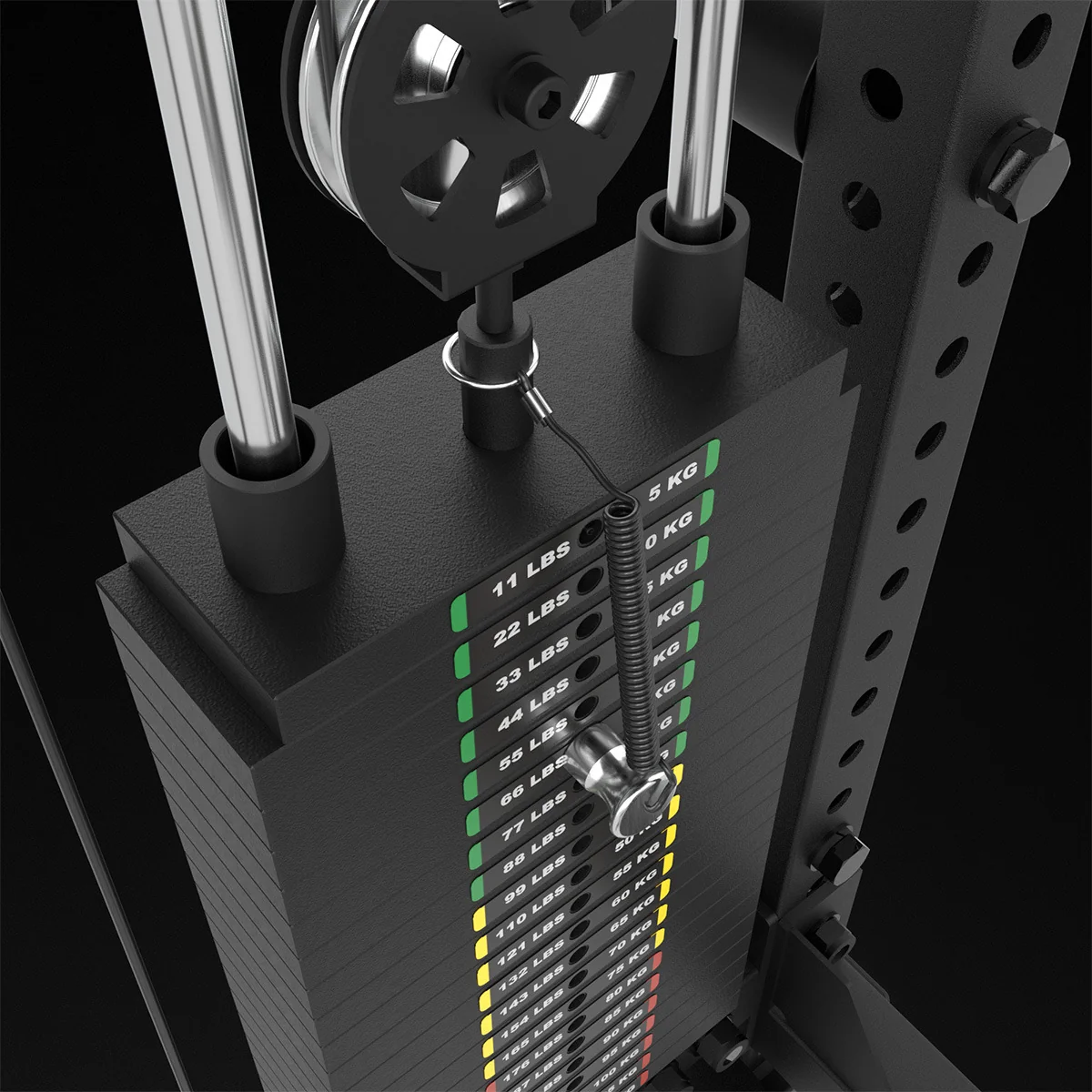

PRECISION WEIGHT STACKS WITH GLIDE BUSHING GUIDANCE
PRACTICAL & COMPACT STORAGE SOLUTION

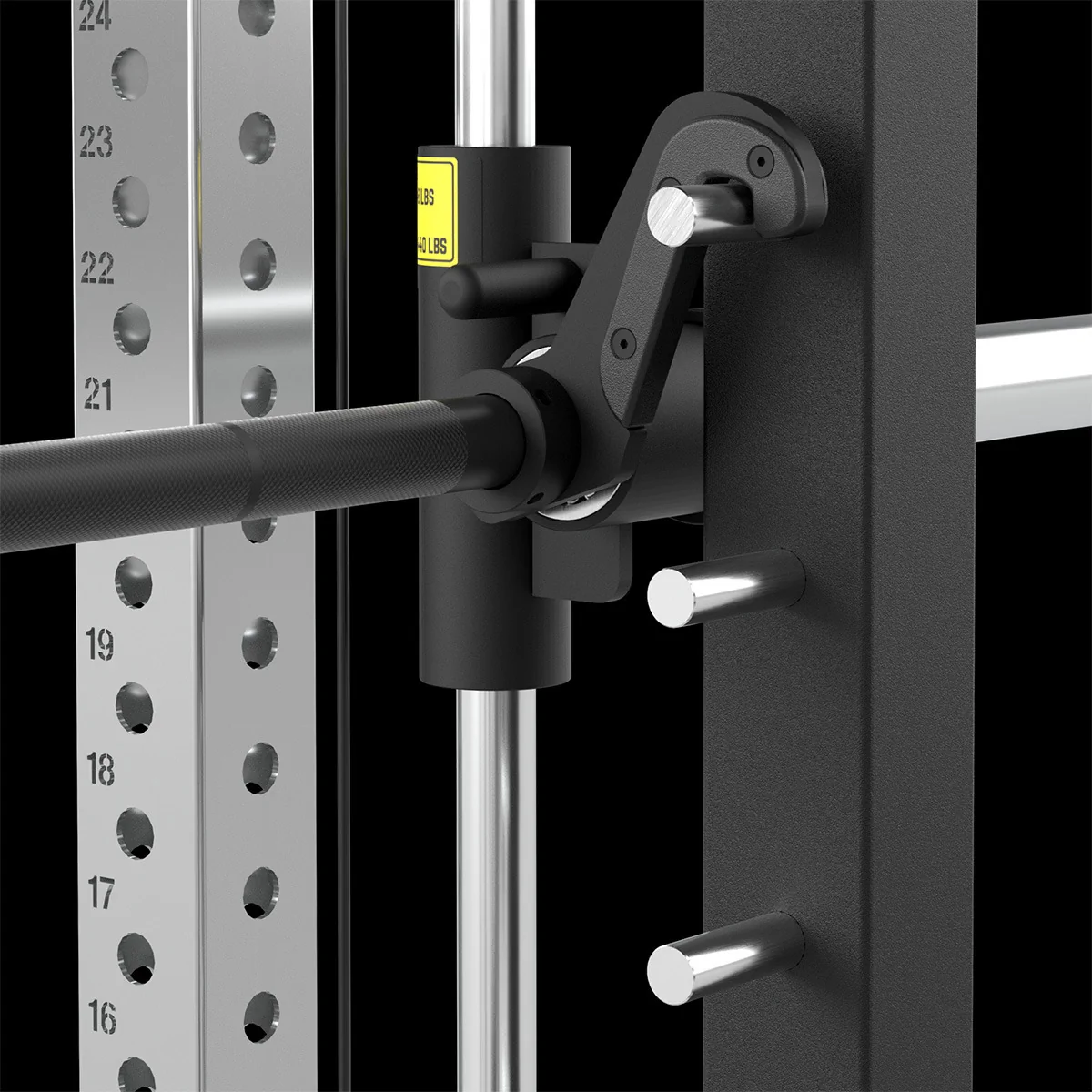

PROFESSIONAL SMITH MACHINE – EXTREMELY SMOOTH RUNNING – STORAGE HOOKS WITH PROTECTIVE COATING

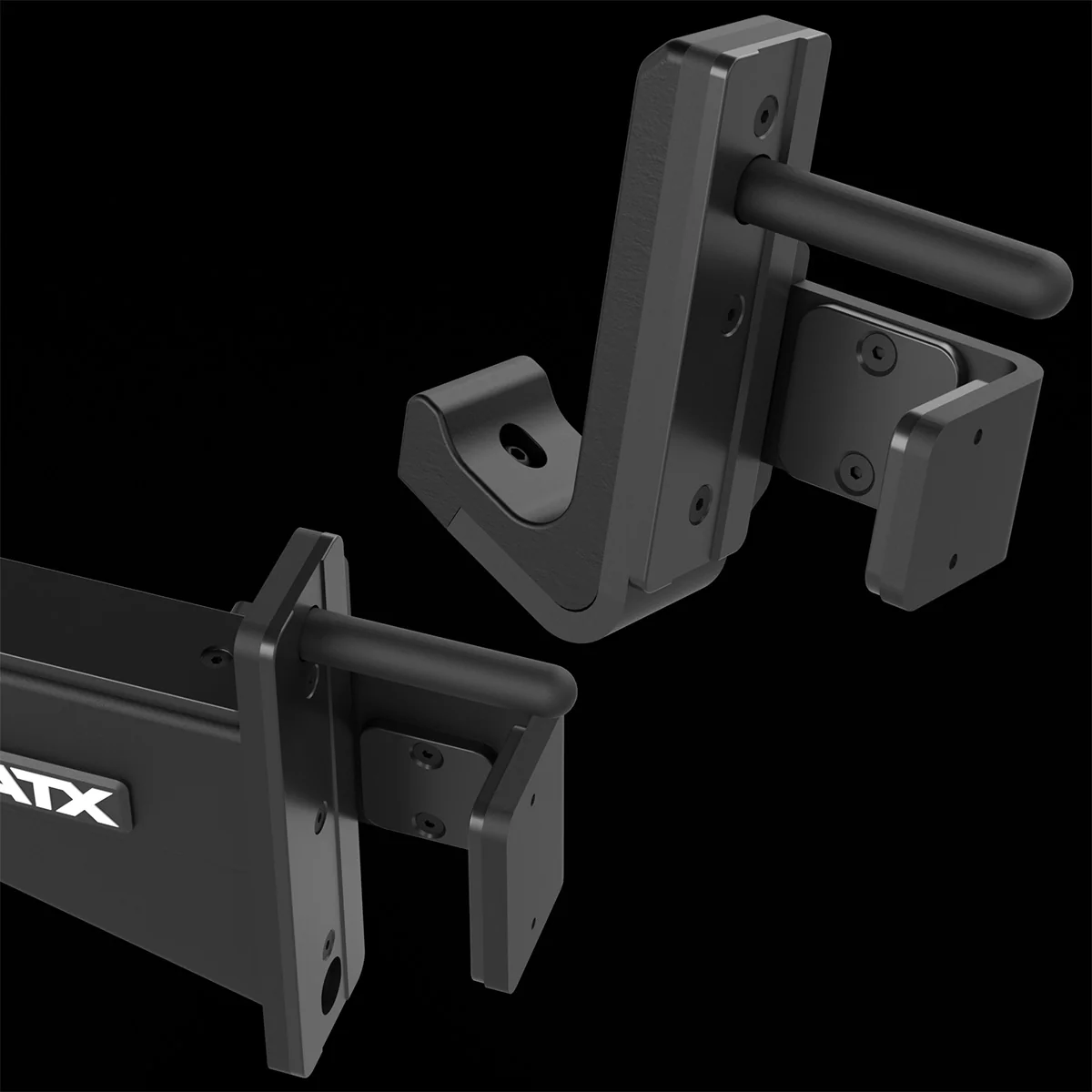

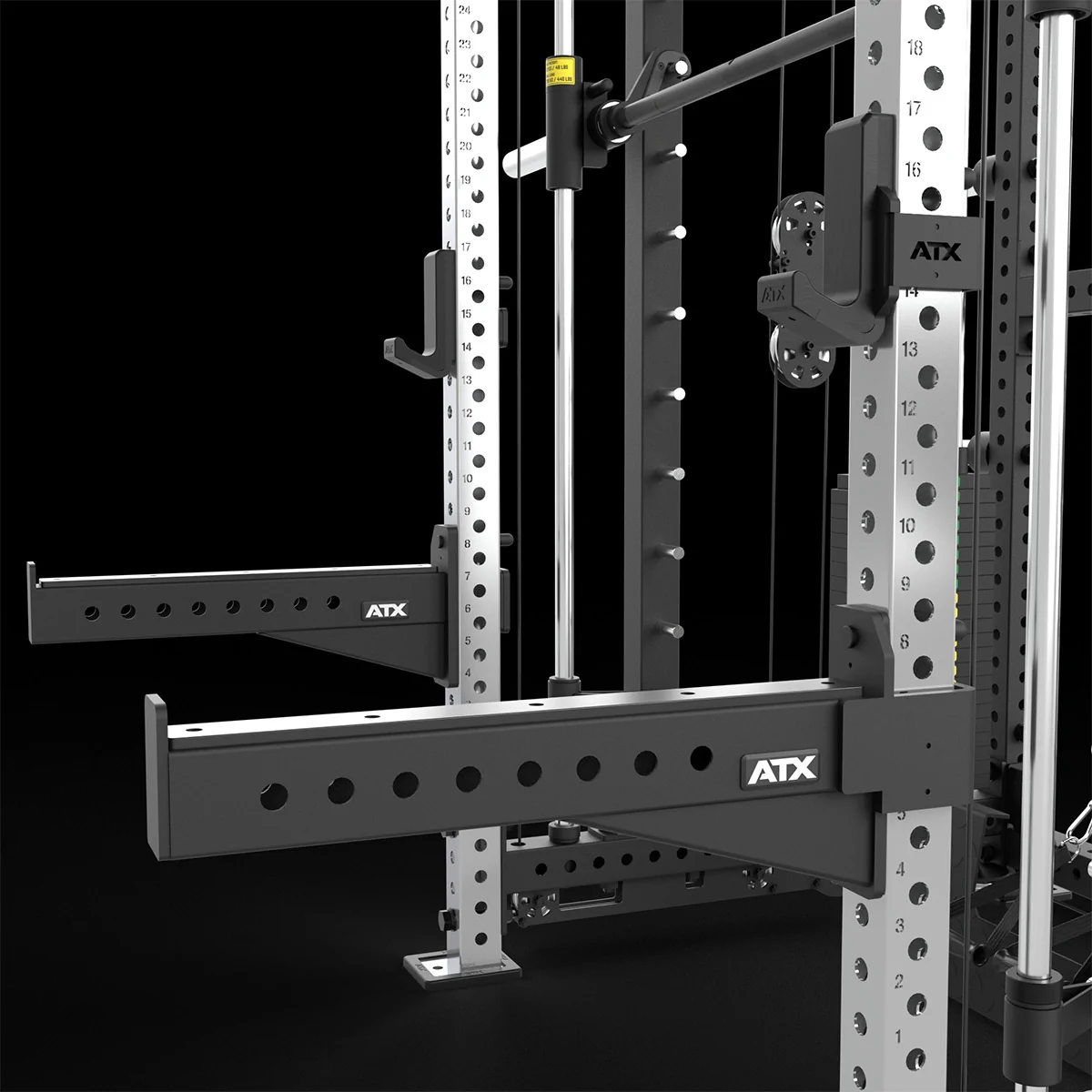

HEAVY-DUTY SPOTTERS & J-HOOKS WITH INSERT PROTECTIVE LINERS

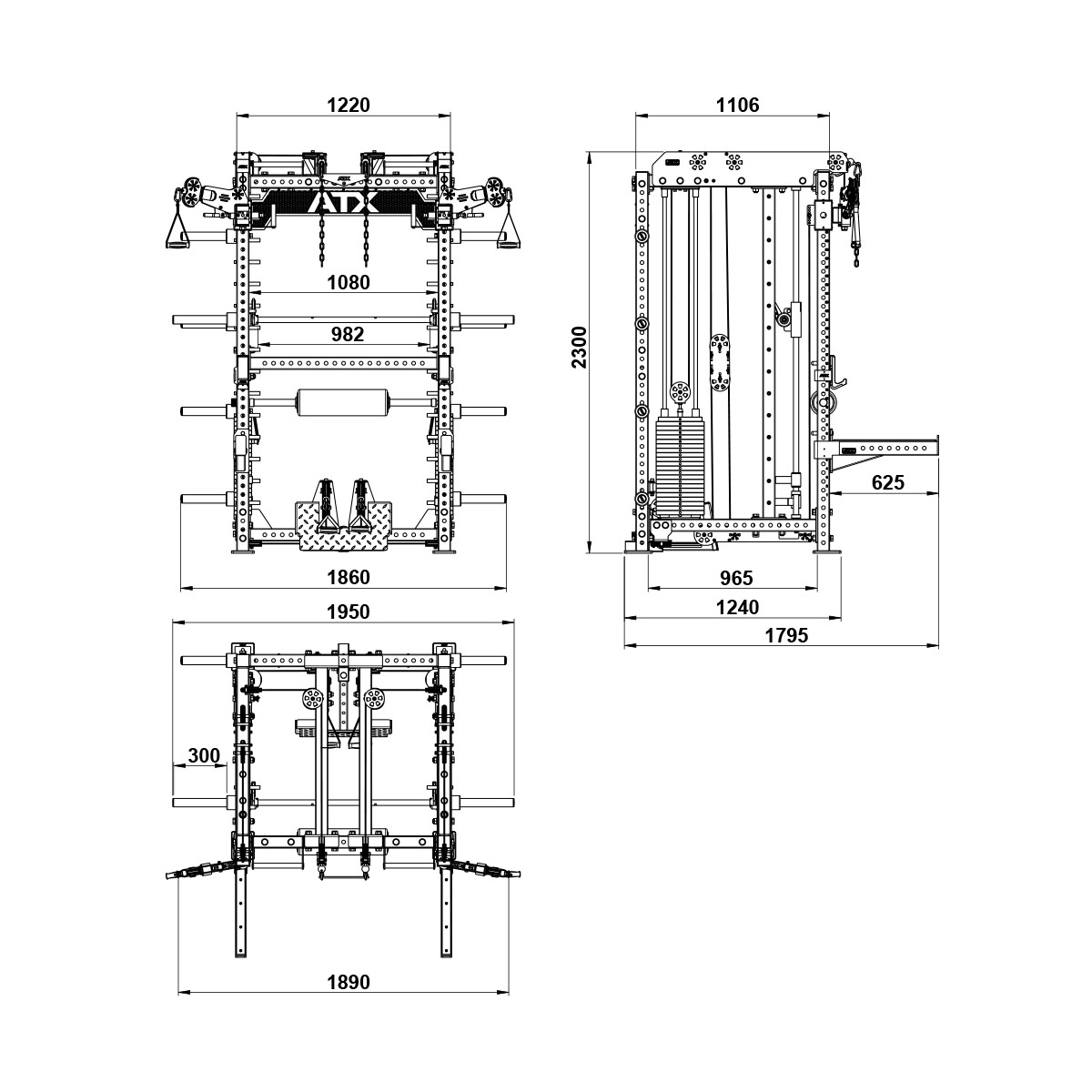

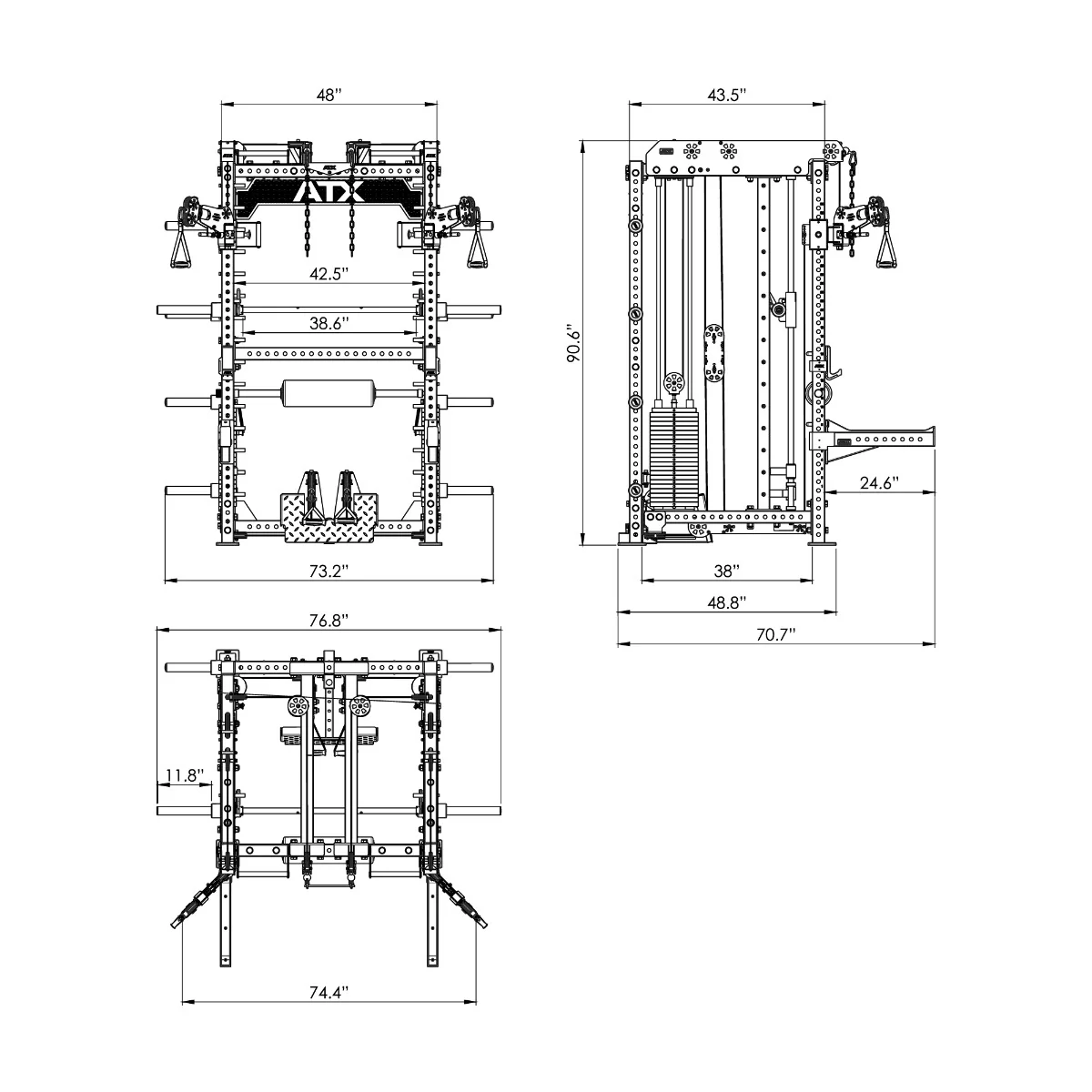

Dimensions
