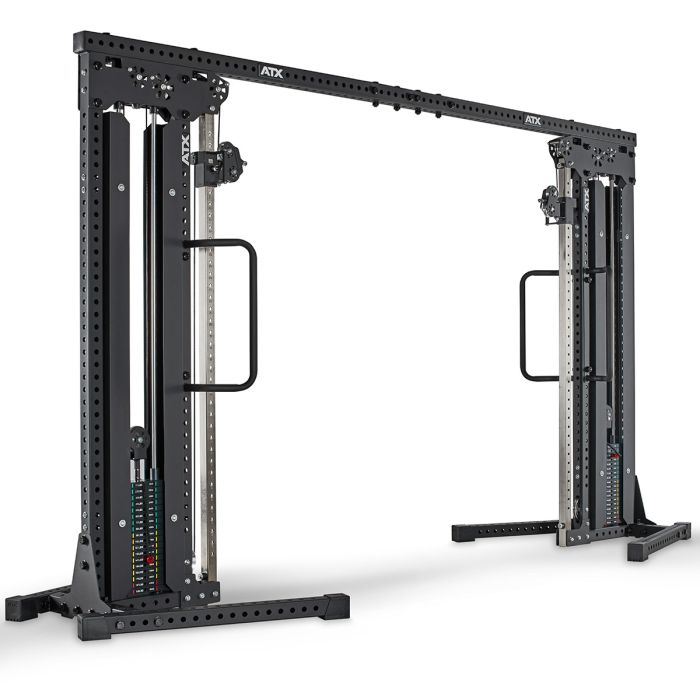

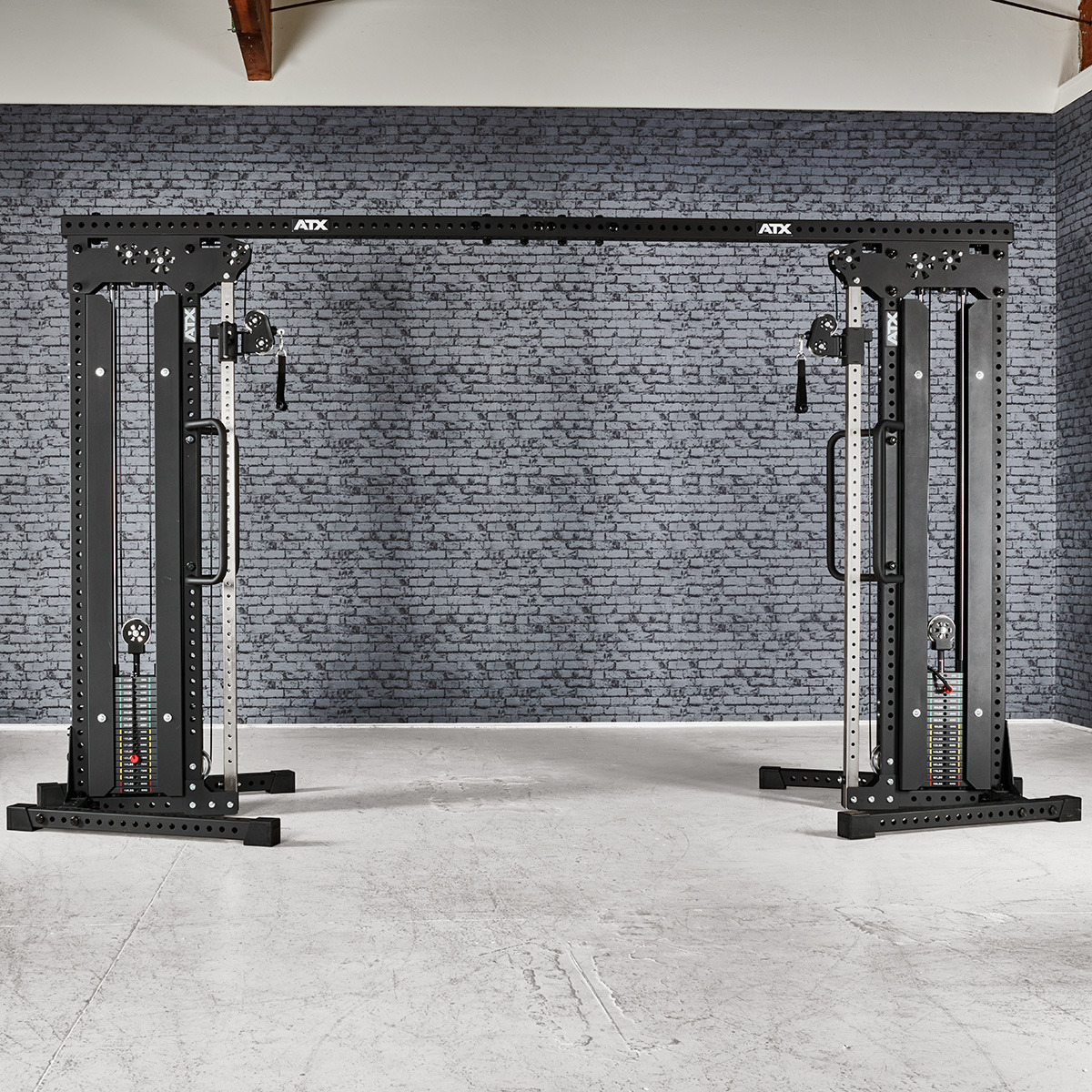

ATX Cable Crossover CCS-800
Professional cable crossover with two weight stacks of 198 lb each. Expandable with pull-up bars and certified for professional use in gyms.
About the product
ATX® CABLE CROSSOVER
– 2 x 198 lb Weight Stacks
EXPERIENCE 100% PROFESSIONAL CABLE TRAINING – ON EVERY LEVEL!
100% gym feeling – that’s exactly what the ATX® Cable Crossover delivers, offering uncompromising, certified commercial-grade quality. Thanks to its generous dimensions, this functional cable station not only ensures optimal cable pre-tension but also maximum freedom of movement – making it the perfect foundation for highly effective workouts.
Speaking of effective training: the ATX® Cable Crossover provides a comprehensive range of exercises – from single-arm biceps curls to the signature cable crossovers. This exceptional versatility is made possible by 37-way height-adjustable pulley units with 170° swivel pulleys. No matter which exercise you choose, the silky-smooth operation guarantees optimal muscle stimulation from every pulling angle.
Massive weight stacks with 2 x 198 lb selectorized weights can be adjusted quickly and easily, enabling even advanced athletes to perform heavy cable training for maximum results.

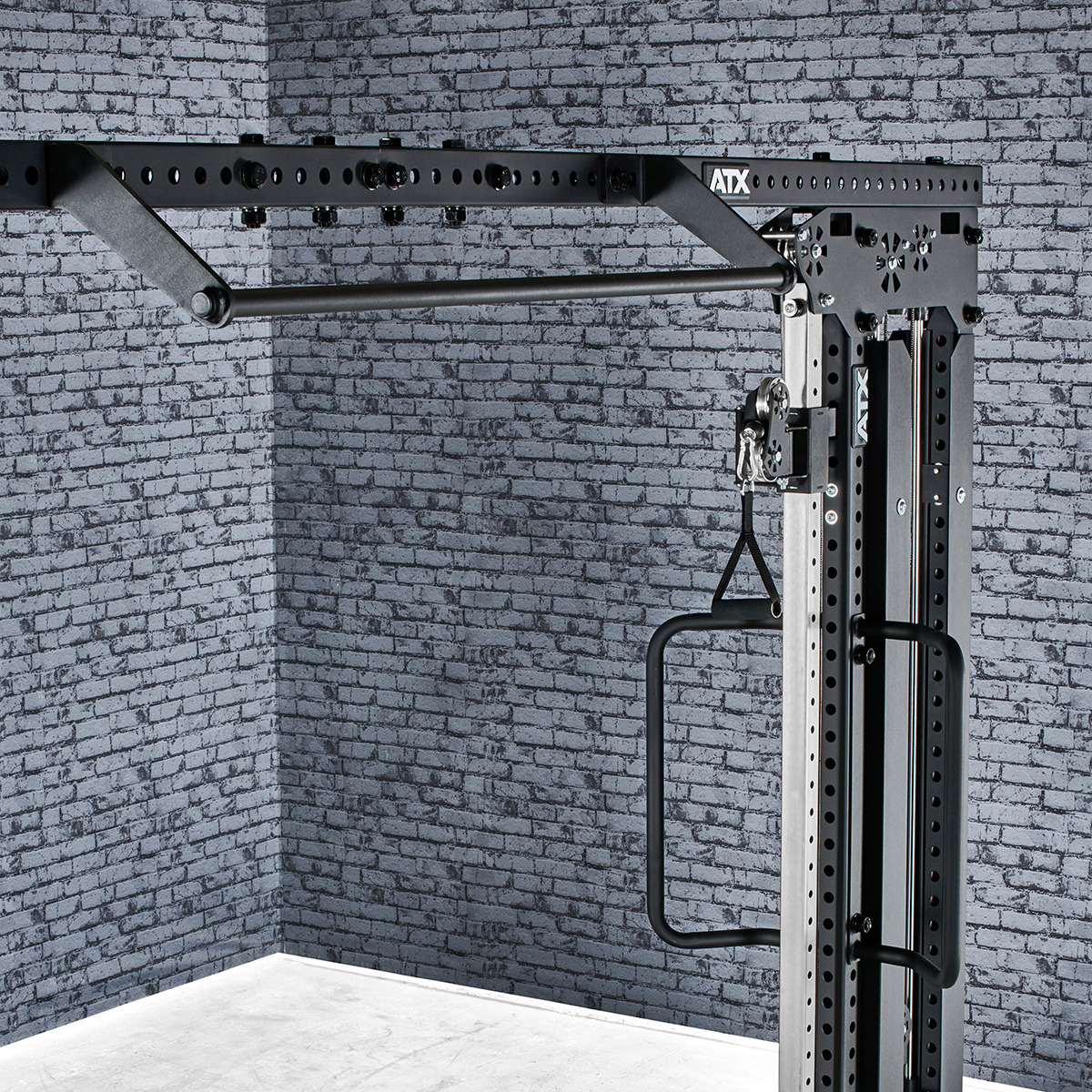

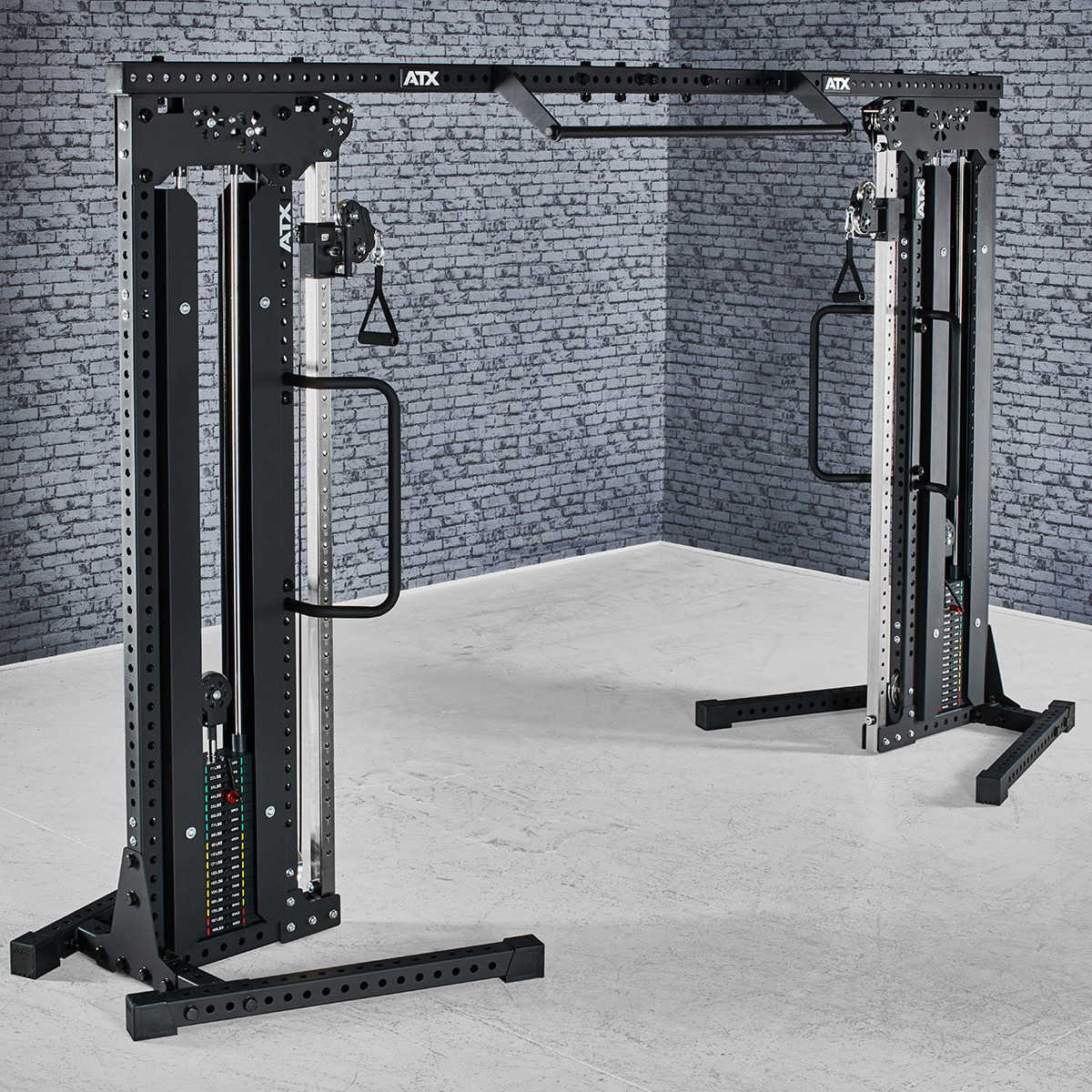

GOOD TO KNOW: The station can be expanded with an optional pull-up bar mounted to the crossbeam.
– Quality Products Designed in Germany –
– Certified according to EN 20957 I.II.IV Class S –
Specifications
| SKU | ATX-CCS-800 |
|---|---|
| Brand | ATX |
| Product series | 800 |
| Length | 163.8" |
| Width | 52" |
| Height | 94.1" |
| Weight | 1034 lb |
| Weight capacity | 352 lb per side |
| Weight stack | 2 x 198 lb (11 lb increments) |
| Color | Matte black |
| Safety certificate | EN 20957 I.II.IV - S |
- Premium workmanship and first-class build quality
- Solid hard chrome-plated guide rods
- Outstanding smoothness thanks to aluminum pulleys with ball bearings and highly flexible steel cables with protective coating
- 2 x 198 lb weight stacks with 11 lb steel plates, including protective covers
- 2:1 pulley ratio
- Two support handles per tower, adjustable to any height on the unit
- Pulley units adjustable to 37 height positions in approx. 2" increments
- Smooth and easy one-hand adjustment
- 170° pulley swivel range allowing angled pulling positions
- Engraved scale for easy reproduction of selected height settings
- Adjustable minimum height: 9.8"; maximum height: 80.7" (approx. measured from floor to cable eyelet)
- Distance between pulley units: approx. 80.3" (measured from cable eyelet to cable eyelet)
- Maximum cable travel: 102.4"
- Incl. 2 carabiner hooks
INCLUDED IN DELIVERY
1 x ATX® CABLE CROSSOVER – 2 x 198 lb Weight Stacks
Item Number: ATX-CCS-800
NOTE
Delivered disassembled, incl. assembly instructions—easy to assemble.
FEATURES

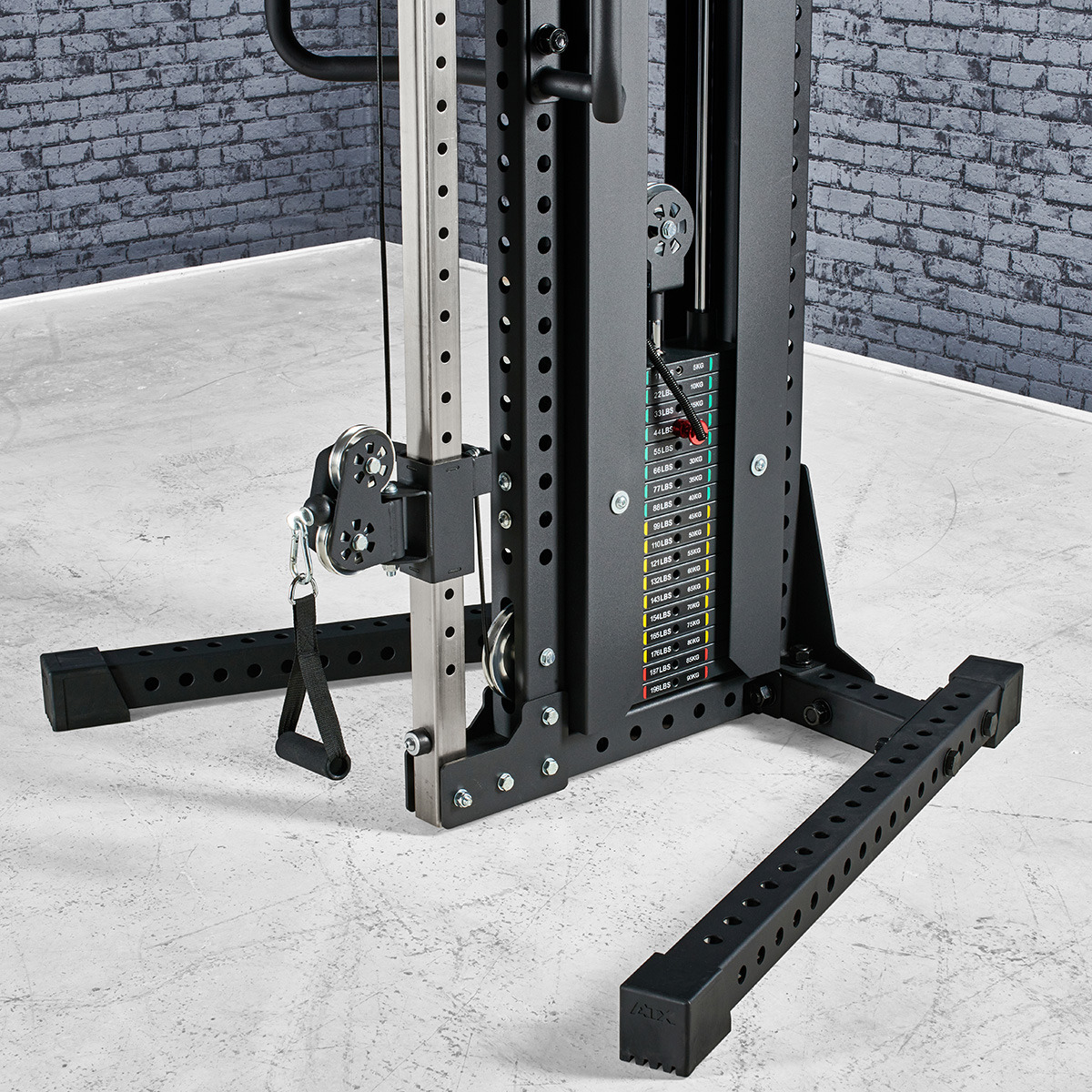

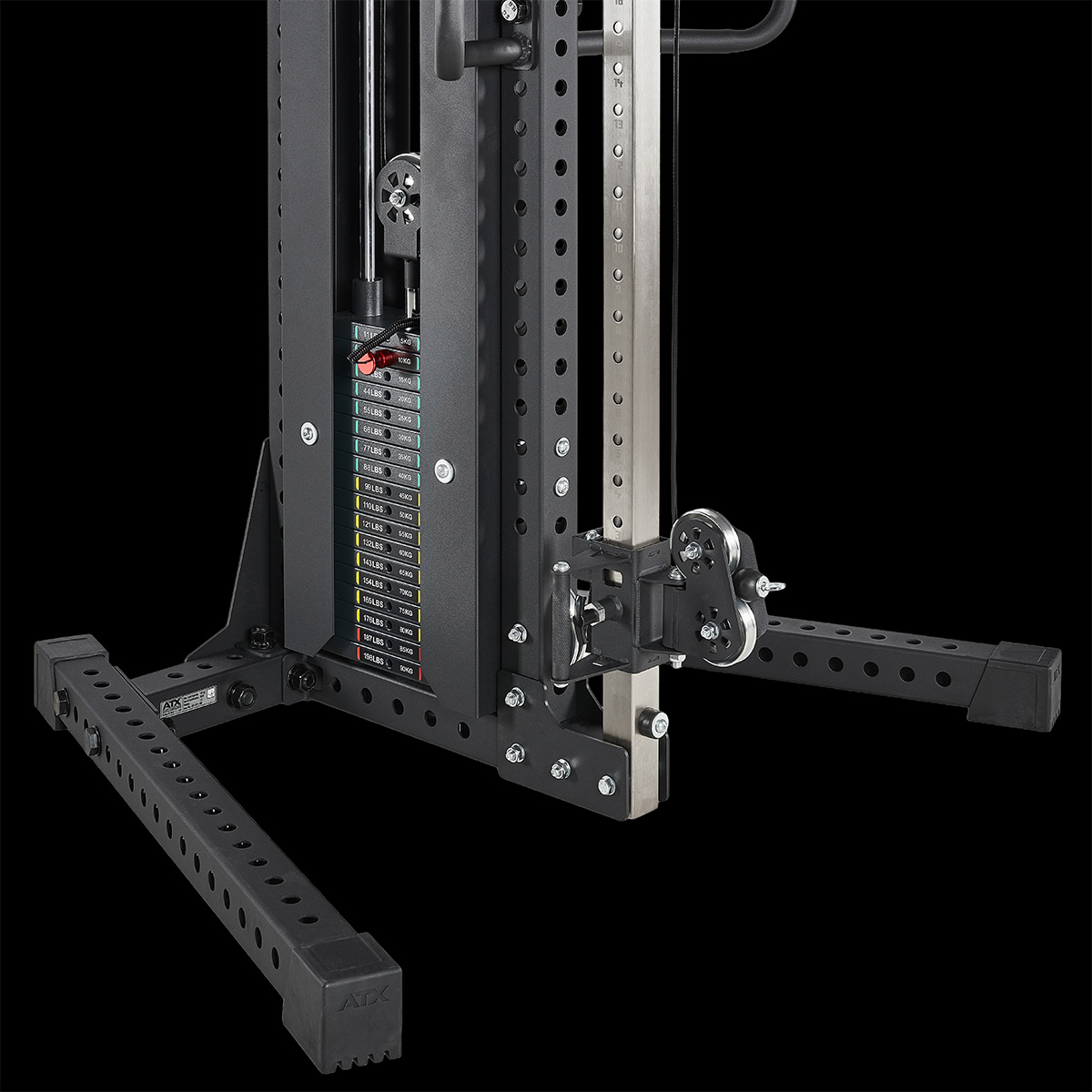

OPEN BASE AREA

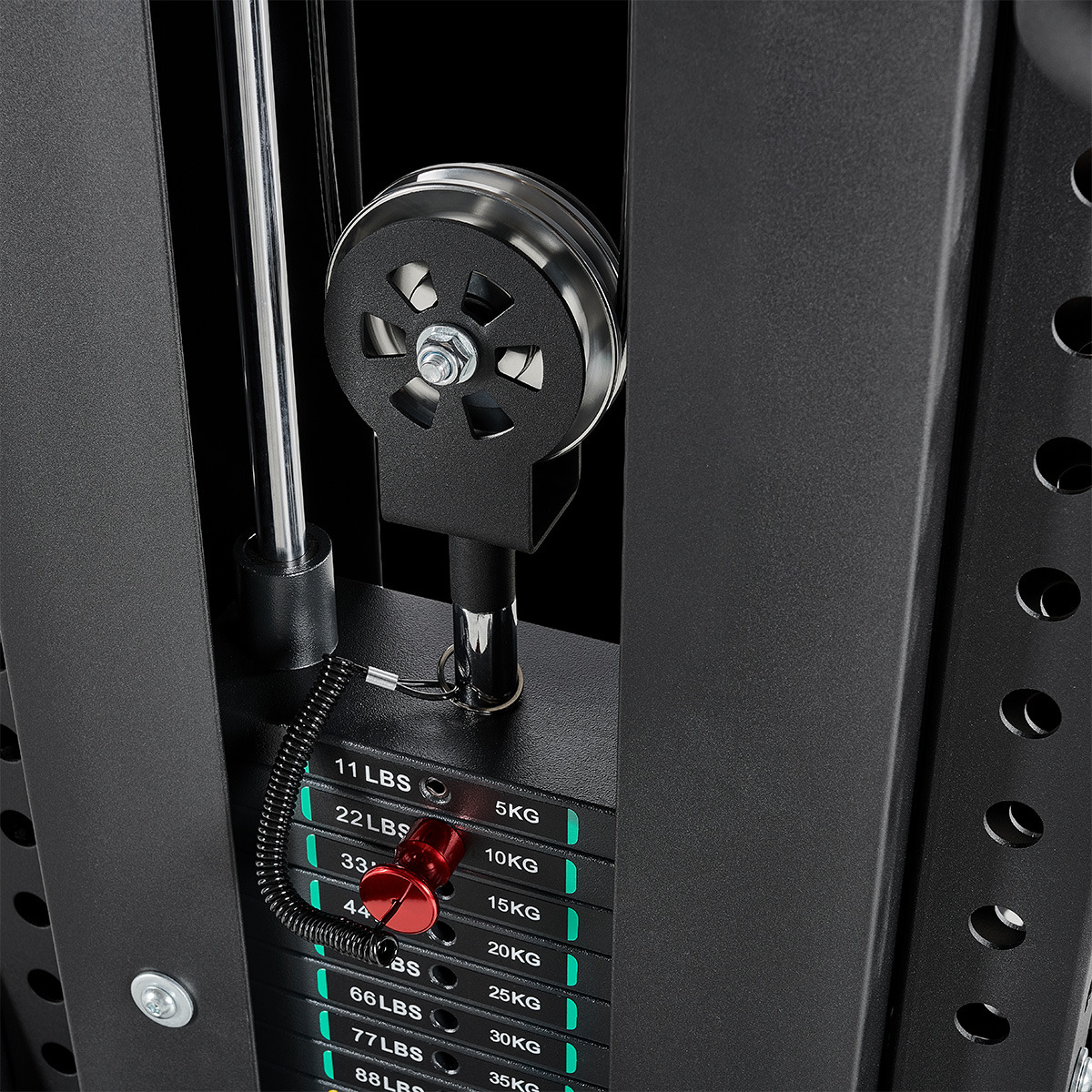

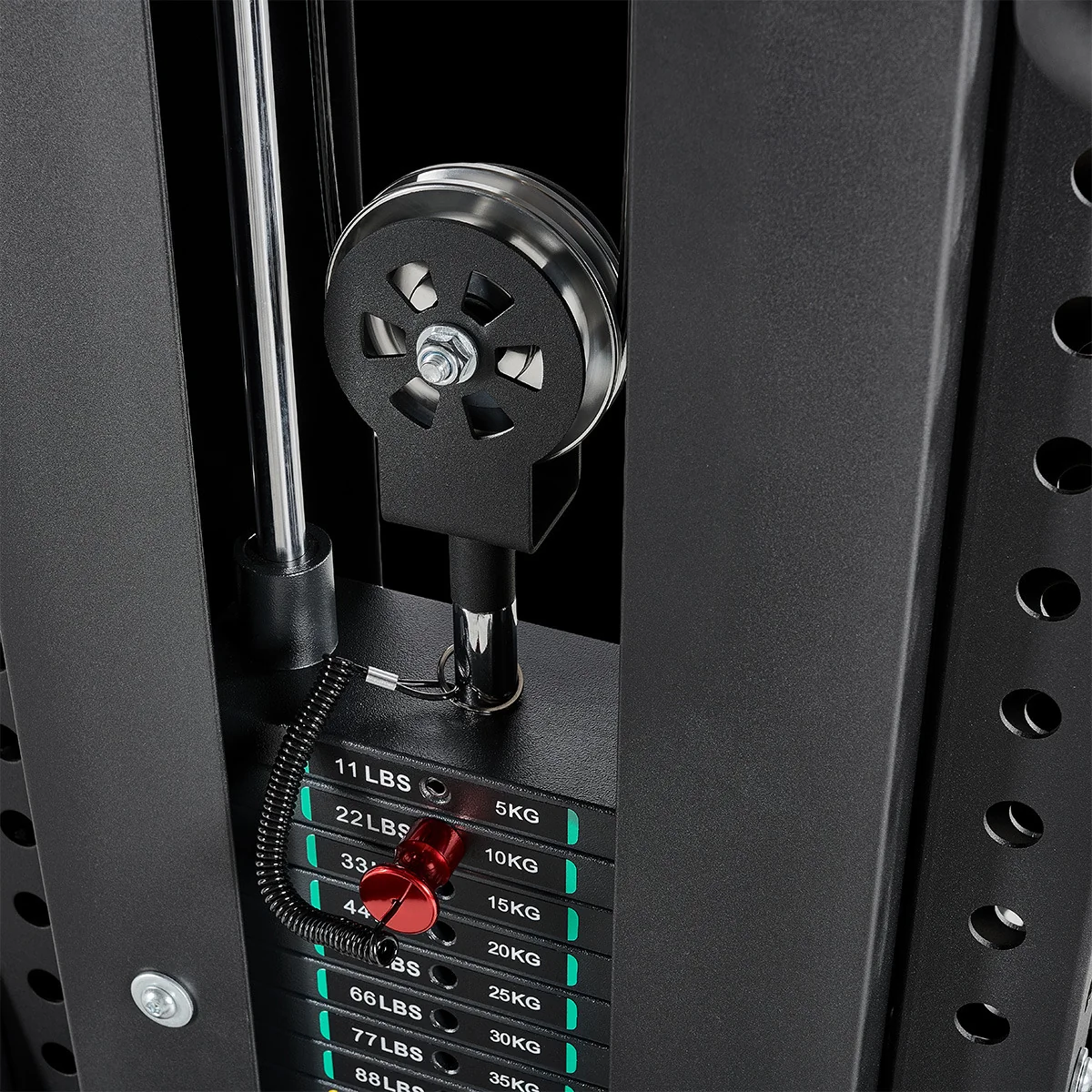

2 X 198 LB WEIGHT STACKS
2 X 90 KG WEIGHT STACKS

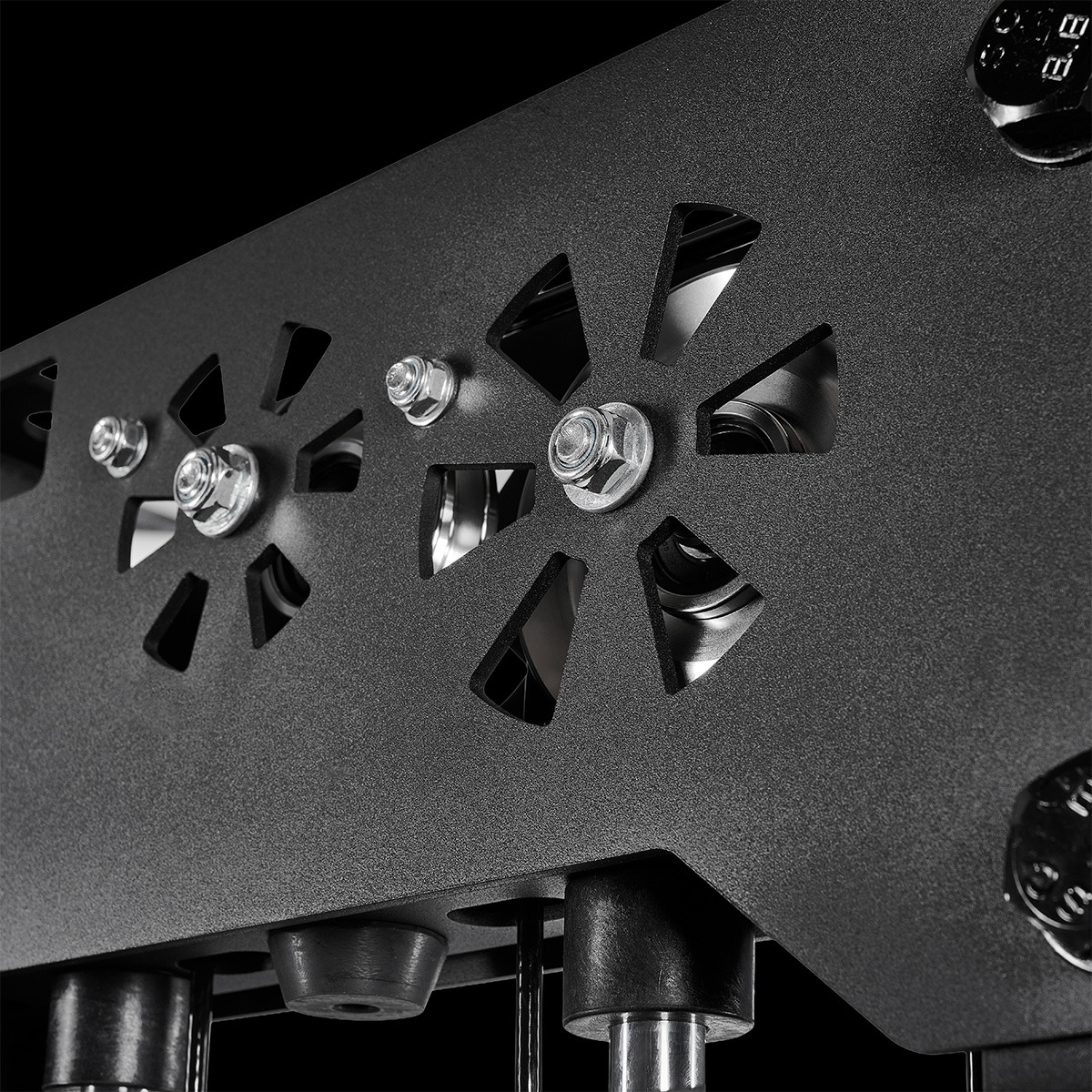

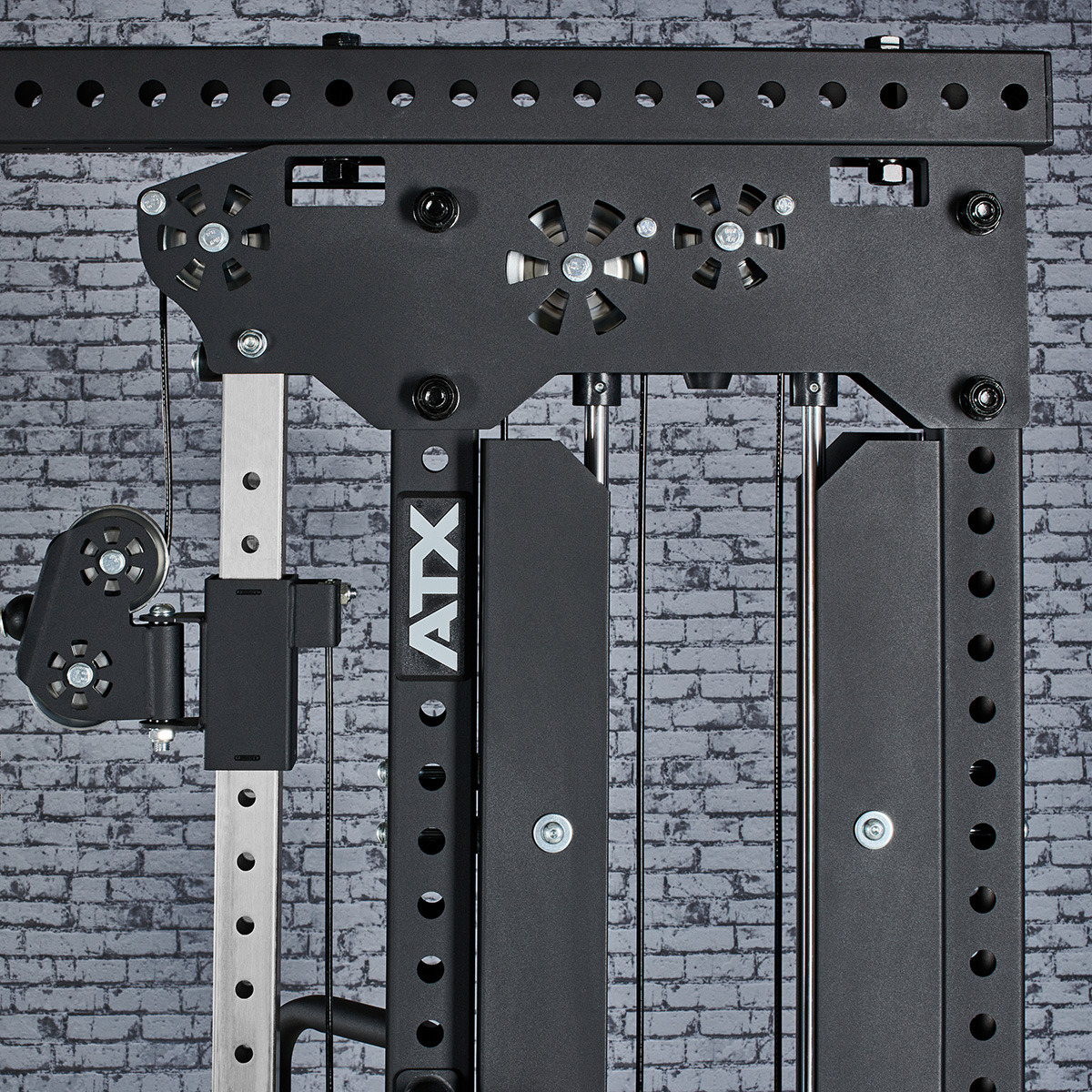

ALUMINUM PULLEYS WITH BALL BEARINGS

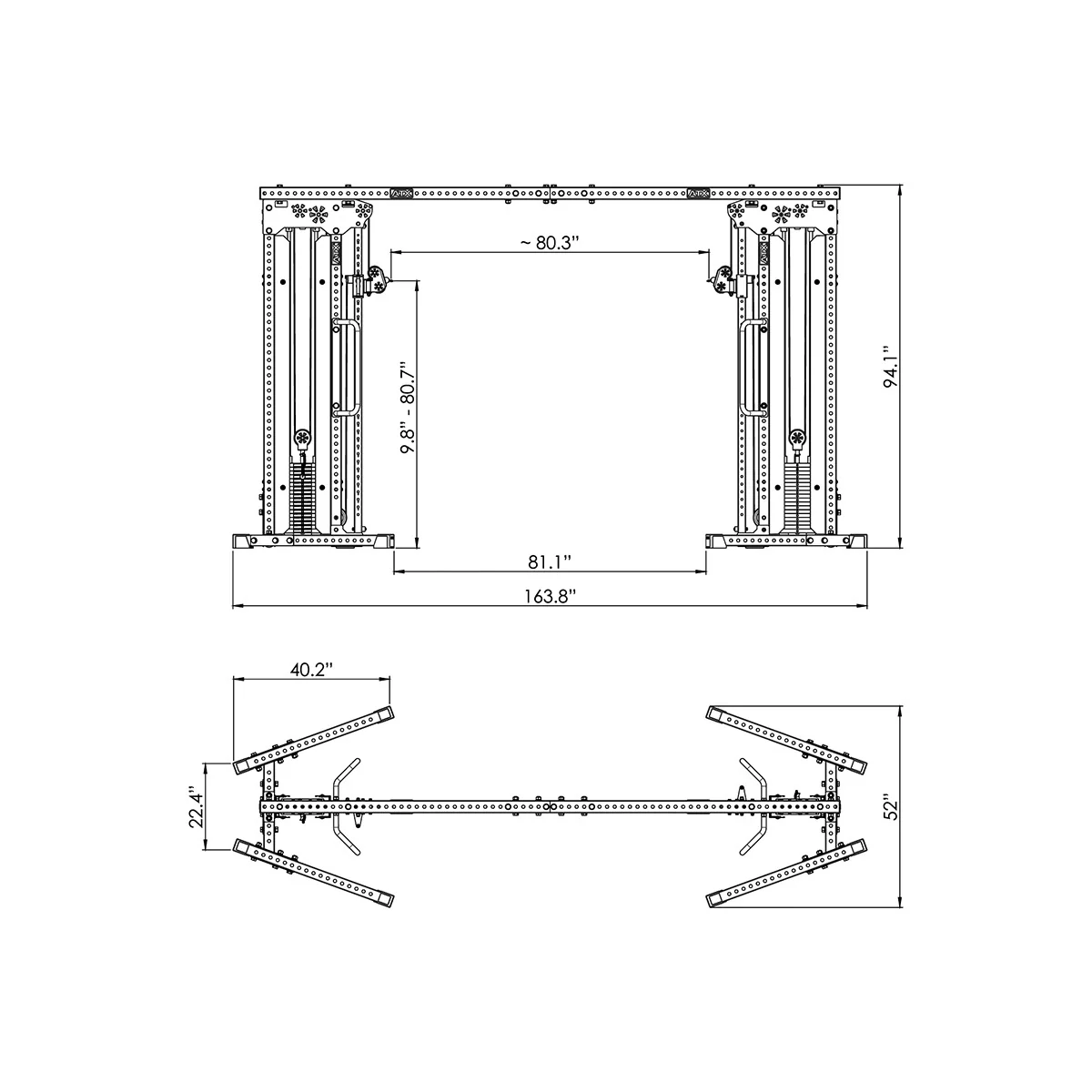

Dimensions
