ATX Lat Machine – plate load LPL-700
Professional, heavy-duty plate-loaded cable station with 1:1 weight ratio, ultra-smooth operation, and extended range of motion for intensive back, arm, and shoulder training.
Complete your setup
About the product

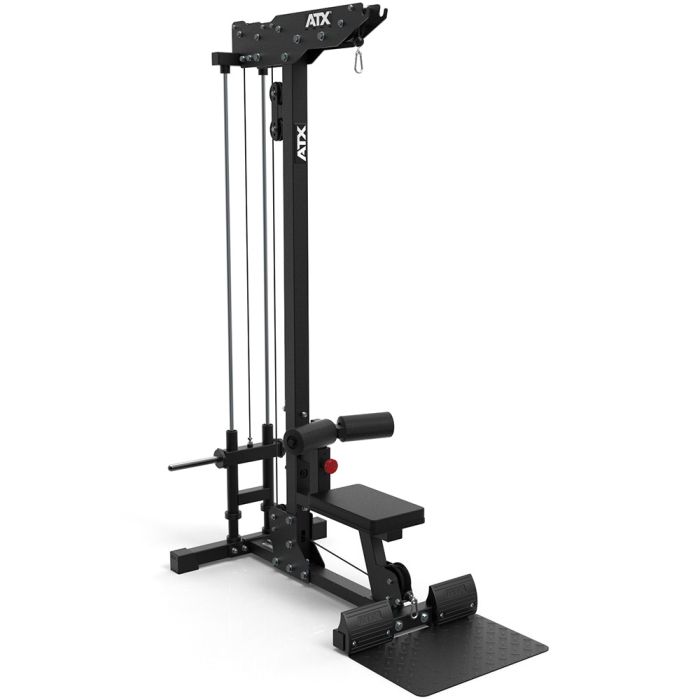

ATX® LAT MACHINE
– Plate Loaded Cable Station
PROFESSIONAL LET PULLDOWN – ENGINEERED FOR PERFORMANCE, BUILT FOR SERIOUS TRAINING!
Designed for intensive back, arm, and shoulder workouts, this plate-loaded cable station delivers precise biomechanics and a highly responsive training feel. The optimized, stretch-free cable routing combined with precision pulley bearings ensures exceptionally smooth operation and consistent resistance throughout the entire range of motion. Upper and lower cable access without modification provides maximum exercise variety within a compact footprint.
With a load capacity of up to 352 lb and a heavy-duty frame constructed from 2.8" 11-Gauge profile steel tubing, the station is built for demanding strength training. The extended 61" stretch distance between seat and bar allows for a true full range of motion – even for taller athletes – supporting maximum muscle elongation and effective contraction on every repetition.
- Quality Products – Designed in Germany
- Certified according to EN 20957 I.II.IV – Class S
Comfort and stability are engineered to match its performance capabilities. The extra-wide, anatomically shaped footplate provides secure support during heavy seated rows, reducing pressure and allowing full focus on execution. A 23.6" wide non-slip checker plate base ensures a stable and safe standing platform for all lower cable exercises.
The result is a robust, space-efficient cable station that combines smooth biomechanics, high load capacity, and uncompromising build quality for long-term, professional-level training.
Specifications
| SKU | ATX-LPL-700 |
|---|---|
| Brand | ATX |
| Width | 30.7" |
| Depth | 58.7" |
| Height | 86.4" |
| Weight | 218.3 lb |
| Weight capacity | 352 lb |
| Frame size | 2.8" x 2.8" 11-Gauge |
| Floor to seat | 16.7" |
| Sleeves length | 2 x 9.3" |
| Strekmaat | 61" |
| Color | Matte black |
| Included |
An extension chain for attaching various handles Snap hooks |
| Safety certificate | EN 20957 I.II.IV - S |
- Upper and lower cable pulleys – usable without modification, with double ball-bearing pulleys for smooth, consistent operation
- 1:1 weight ratio – no pulley reduction effect, ensuring direct resistance transfer
- Stretch-free steel cables with protective coating and V-groove pulleys for secure guidance
- Weight carriage (20.3 lb) with special slide bearings
- Extended 61" stretch distance (seat to bar) for full arm extension, even for taller athletes
- Adjustable thigh pads and wide, anatomically shaped footrests for comfort and stability
- 23.6" wide non-slip checker plate base for secure footing
- Extremely robust, freestanding frame made from 2.8" x 2.8" 11-Gauge profile steel tubing and 0.2" laser-cut steel plates
- Quick and easy handling, rubberized floor-protecting non-slip feet
- Weight plate holder – standard Ø 30 mm / 1.2" (optional adapters for Ø 50 mm / 2" plates)
- Heavy-duty capacity – up to 352 lb
INCLUDED IN DELIVERY
1 x ATX® LAT MACHINE – Plate Load
Incl. an extension chain for attaching various handles
Incl. snap hooks
Item Number: ATX-LPL-700
NOTE
Delivered disassembled, including assembly instructions — easy to assemble.
