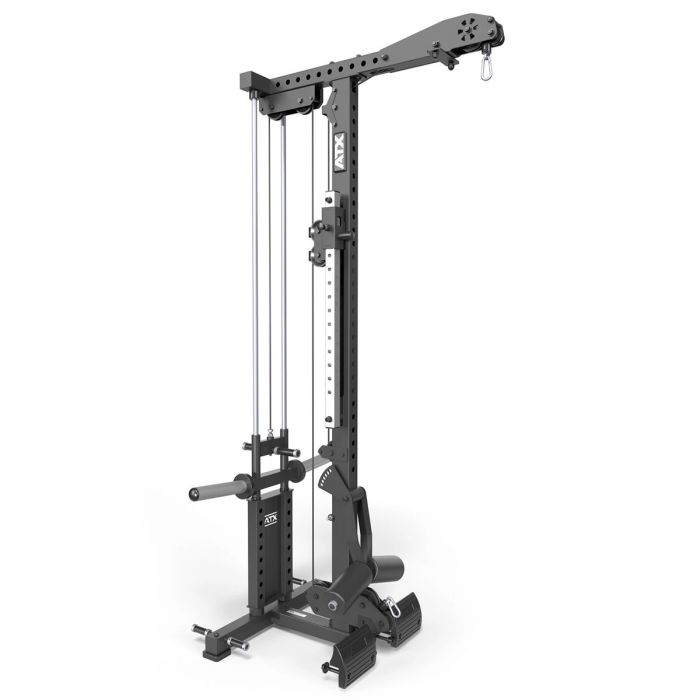

ATX Lat Pulley Option LTO-780 - Plate Loaded

ATX^® Lat Pulldown Option LTO-780 – Plate Loaded

Attachment compatible with ATX^® Rack Series 780
Plate sleeves Ø 50 mm (Olympic size)

This professional lat pulldown attachment features numerous high-end design elements that ensure smooth performance and superior functionality. Built in the unmistakable ATX^® design, this accessory combines premium craftsmanship with functional value.

FEATURES

• Silky-smooth and jerk-free motion:
  • Sled with glide bushing guidance
  • Ball-bearing cable pulleys
  • Stretch-resistant coated steel cable
  • Solid steel guide rods
• 1:1 weight ratio for direct resistance
• Top and bottom pulley functions
• Dual-track ball-bearing pulleys at both upper and lower cable mounts ensure optimal cable glide and reduce wear
• Extended stretch path – suitable for users up to 200 cm (6'6")
• Innovative cable length adjustment system – enables precise setting of grip height, stretch distance, and pull path for users from 155–200 cm (5'1"–6'6")
• Height-adjustable and foldable leg support for secure anchoring during heavy upper pulley work:
  • High-grade urethane roller pads – hygienic and abrasion-resistant
  • Quick height adjustment via spring-loaded pin
• Large, stable footplates with non-slip surface for solid support during seated rows
• Heavy-duty capacity – supports up to 200 kg (440 lbs)
• Includes roller band pegs for adding resistance bands – enables additional dynamic loading
• Olympic-size plate sleeves Ø 50 mm – chrome-plated
• Angled plate sleeves prevent plates from sliding off, allowing safe, clip-free training
• Constructed from 70 x 70 x 3 mm square steel tubing with laser-cut holes and 5–8 mm form-steel plates
• Rubberized feet – floor-safe and slip-resistant
• Professional-grade build quality in authentic ATX^® style
• Studio certified – EN 20957 I.II.IV Class S

INCLUDED IN DELIVERY

1 x ATX^® Lat Option LTO-780 – Plate Load

Item Number: ATX-LTO-780-PL

NOTE

Ships disassembled with assembly instructions – quick and easy setup.

Power rack, resistance bands, and other accessories shown are not included.
